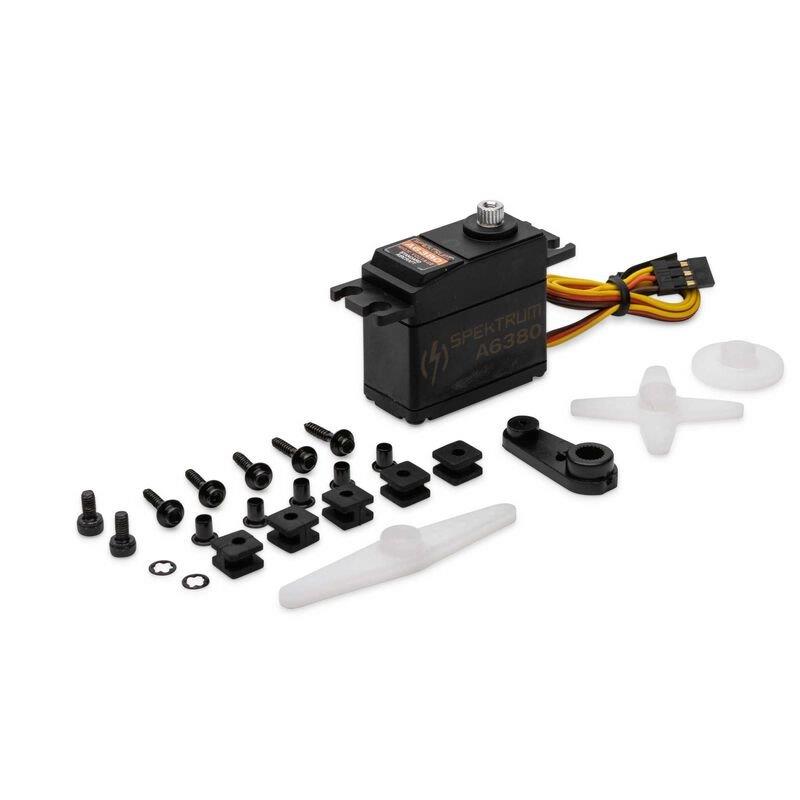

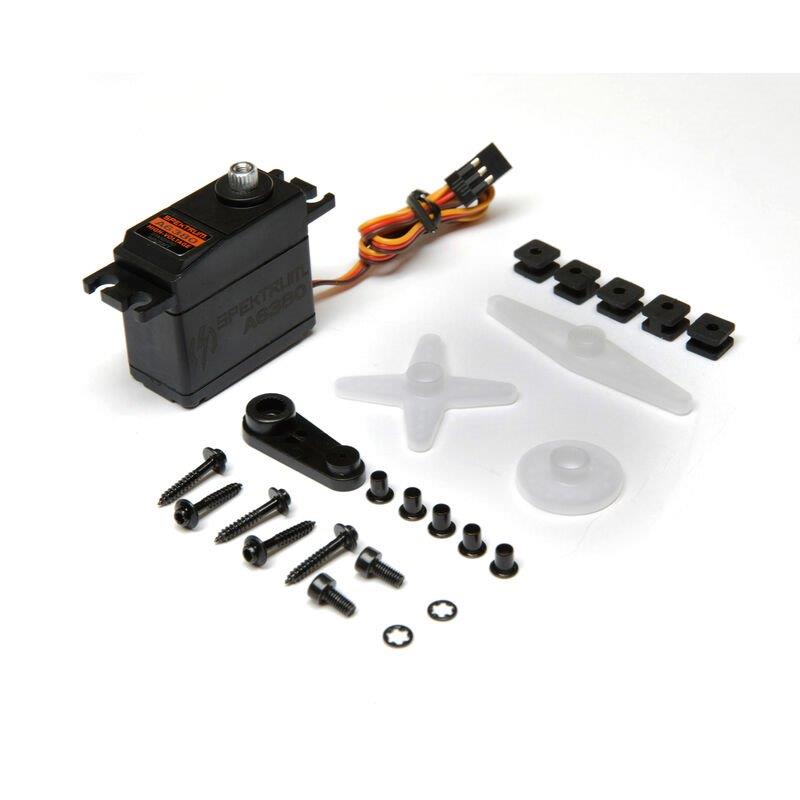

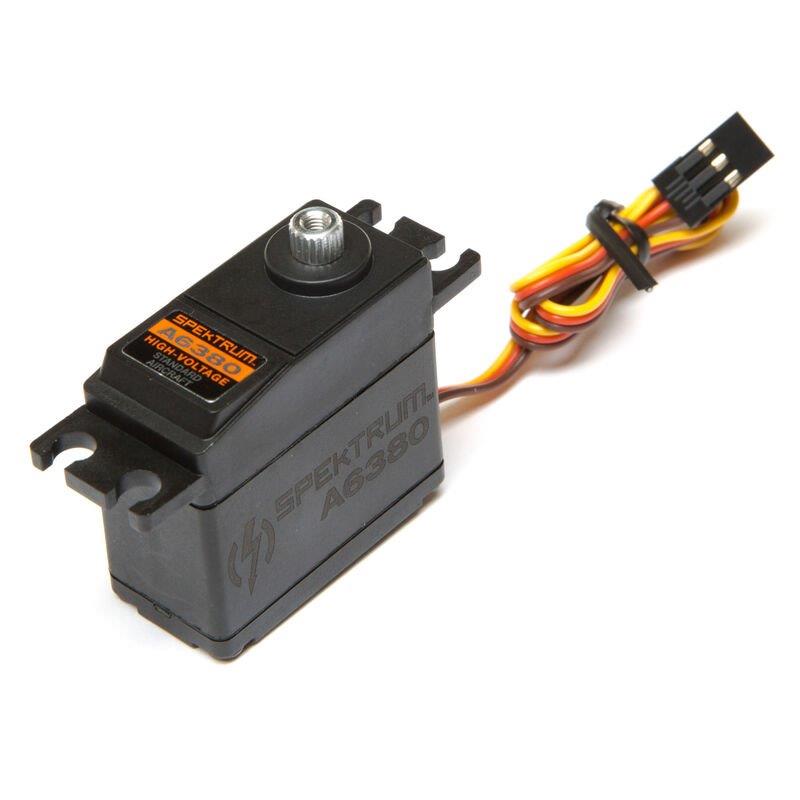

Spektrum A6380 Standard Digital HV High Torque High Speed MG Aircraft Servo
359 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSA6380
Product Details
Overview
The Spektrum A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
Product Specifications:
Application: Airplane
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 11.8" (300 mm)
Deadband: 5µs
Gear Type: Metal
Input Voltage: 6.0V to 8.4V
Maximum Servo Speed: 0.17 sec/60 deg @ 6V; 0.13 sec/60 deg @ 8.4V
Maximum Servo Torque: 102 oz-in (7.3kg-cm) @ 6V; 160 oz-in (11.5kg-cm) @ 8.4V
Product Application: Air
Product Height: 1.47" (37 mm)
Product Length: 1.52" (39 mm)
Product Weight: 1.5 oz (42.5 g)
Product Width: 0.74" (19 mm)
Programmable: No
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 24 AWG
Overview
The Spektrum A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
Product Specifications:
Application: Airplane
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 11.8" (300 mm)
Deadband: 5µs
Gear Type: Metal
Input Voltage: 6.0V to 8.4V
Maximum Servo Speed: 0.17 sec/60 deg @ 6V; 0.13 sec/60 deg @ 8.4V
Maximum Servo Torque: 102 oz-in (7.3kg-cm) @ 6V; 160 oz-in (11.5kg-cm) @ 8.4V
Product Application: Air
Product Height: 1.47" (37 mm)
Product Length: 1.52" (39 mm)
Product Weight: 1.5 oz (42.5 g)
Product Width: 0.74" (19 mm)
Programmable: No
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 24 AWG
