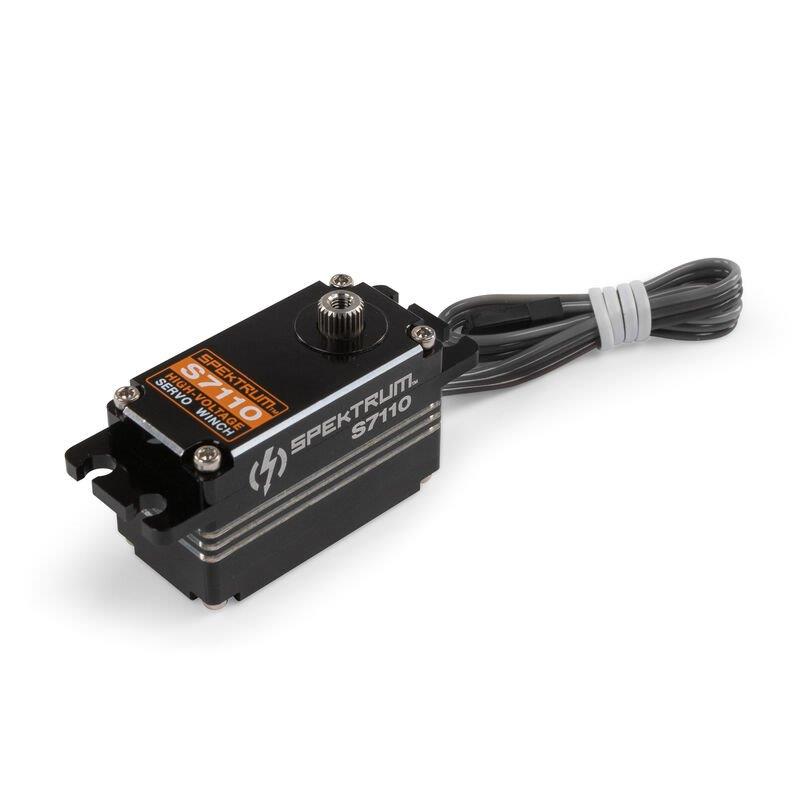

Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers
1 999 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSS7110
Product Details

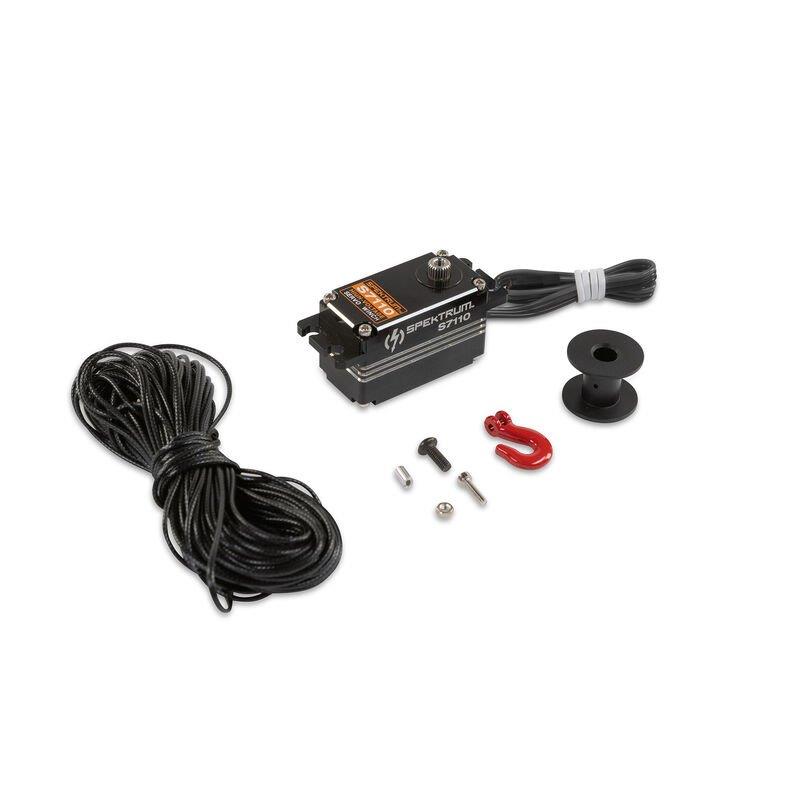

In The Box
(1) S7110 High Voltage Servo Winch
(1) Scale recovery hook
(1) Aluminum spool
(1) 7 Fiber line
Features
Design for 1/10th Scalers and Crawlers
6V to 8.4V Operating Voltage
Durable and long-lasting brushless motor
High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
All Aluminum servo case for heat dissipation
7' feet of line with scale recovery hook included
Built-in Integrated brushless controller for easy set up and installation
Precise metal internal gears
Waterproof
25 teeth output shaft
Includes everything needed to start winching
Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
Product Specifications:
Application: 1/10 Rock Crawlers- Winch
Bearing: Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 7.48" (190 mm)
Current Draw Idle: 2mA
Current Draw Stall: 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
Gear Type: Metal
Input Voltage: 6.0V ~ 8.4V
Maximum Servo Speed: 123RPM @ 6.0V, 155RPM @ 7.4V
Maximum Servo Torque: 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V

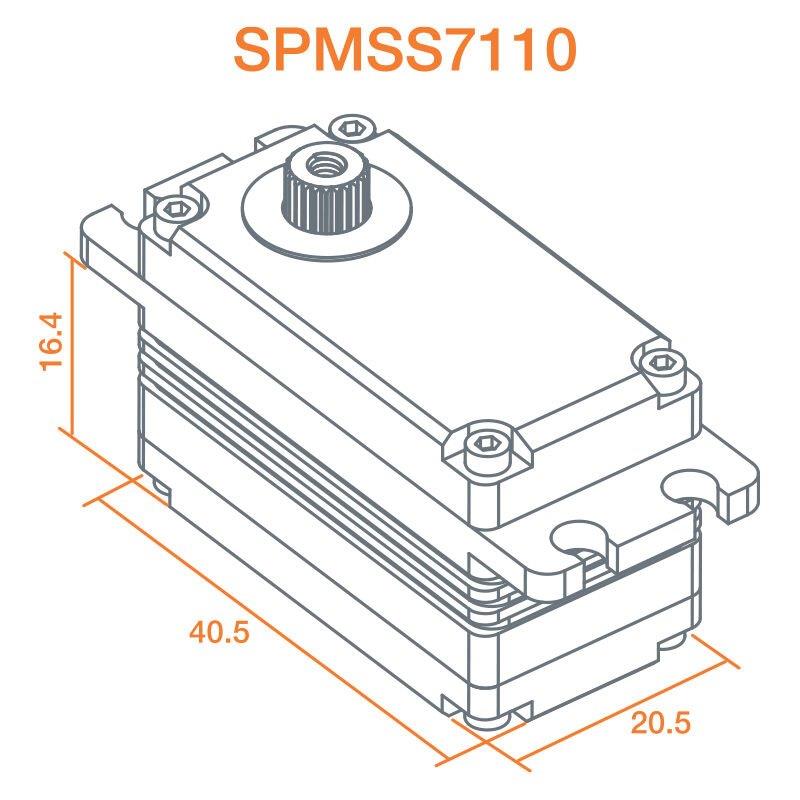

Product Height: 0.99" (25 mm)
Product Length: 1.59" (40 mm)
Product Weight: 2oz (57g)
Product Width: 0.8" (20 mm)
Programmable: No
Prop 65: California Residents Prop 65 WARNINGS.
Rotation Range: 360 Degree Continuous
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Low Profile
Servo Type: Digital
Spline Count: 25 - Tooth
Wire Gauge: 22 AWG
In The Box
(1) S7110 High Voltage Servo Winch
(1) Scale recovery hook
(1) Aluminum spool
(1) 7 Fiber line
Features
Design for 1/10th Scalers and Crawlers
6V to 8.4V Operating Voltage
Durable and long-lasting brushless motor
High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
All Aluminum servo case for heat dissipation
7' feet of line with scale recovery hook included
Built-in Integrated brushless controller for easy set up and installation
Precise metal internal gears
Waterproof
25 teeth output shaft
Includes everything needed to start winching
Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
Product Specifications:
Application: 1/10 Rock Crawlers- Winch
Bearing: Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 7.48" (190 mm)
Current Draw Idle: 2mA
Current Draw Stall: 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
Gear Type: Metal
Input Voltage: 6.0V ~ 8.4V
Maximum Servo Speed: 123RPM @ 6.0V, 155RPM @ 7.4V
Maximum Servo Torque: 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
Product Height: 0.99" (25 mm)
Product Length: 1.59" (40 mm)
Product Weight: 2oz (57g)
Product Width: 0.8" (20 mm)
Programmable: No
Prop 65: California Residents Prop 65 WARNINGS.
Rotation Range: 360 Degree Continuous
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Low Profile
Servo Type: Digital
Spline Count: 25 - Tooth
Wire Gauge: 22 AWG
