SRT BHMX2 HiVOLT BRUSHLESS Digi servo LOW PROFILE (23 kg-0,065s/60°),180mm cable
1 199 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SRT-BHMX2-180
Digital low-profile HiVolt standard servo with Brushless motor and metal gears. 180mm cable suitable for nitro cars.
SRT BHMX2
The new SRT servo series R1max brings brushless motors with uncompromising performance, voltage, temperature and signal logging, or support for high-speed transmission modes of Futaba, Sanwa and FlySky. All in a sleek all aluminum housing and with steel gears.
KEY FEATURES
Ideal for 1/10 scale on-road and off-road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
Programmable High torque Brushless servo
Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
Supporting i-BUS2
25T output shaft
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Aluminum 7075 + Titanium
Control system: pulse width control
Working frequency: 1520μs / 330Hz
Operating voltage: DC 6.0-8.4V
Operating temperature range: -10 to + 60 deg
Operating speed (6.0v): 0.08 sec/60 degrees at no load
Operating speed (7.4v): 0.073 sec/60 degrees at no load
Operating speed (8.4v): 0.065 sec/60 degrees at no load
Stall torque (6.0v): 15.0 kg.cm
Stall torque (7.4v): 18.0 kg.cm
Stall torque (8.4v): 23.0 kg.cm
Potentiometer drive: direct drive

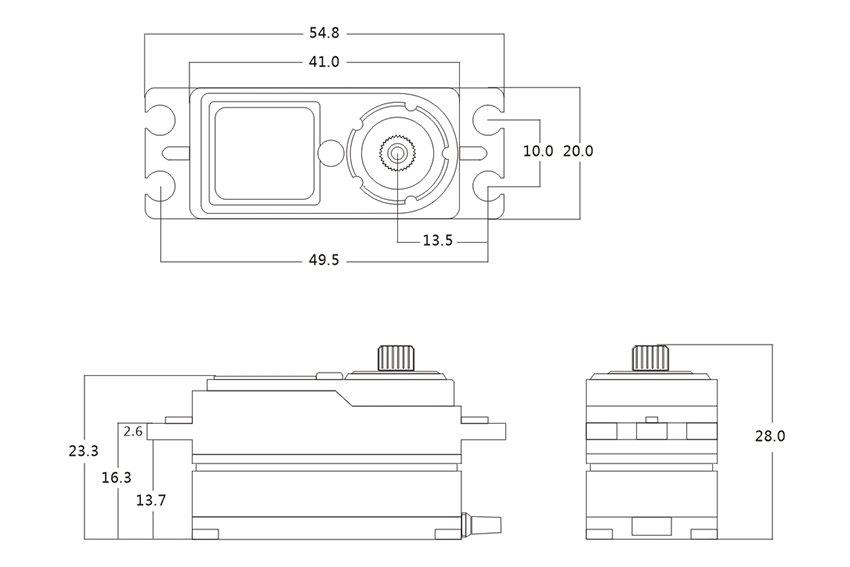

Dimensions: 41.0 x 20.0 x 23.3 mm
Weight: 42.0 g
Protection: IP67
Connector wire length: JR 180 mm
