Beskrivning
Art.nr: 1-02853
Contents:
1x HiTEC Servo DB778WP
Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
Mounting hardware

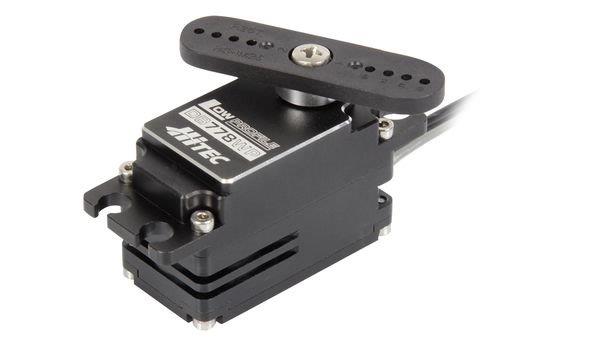

Built compact and sealed all around: The HiTEC DB778WP servo motor is IP67-rated and, thanks to its small footprint, fits into tight spaces without sacrificing performance. A brushless DC motor delivers a highly dynamic response, while the contact analog potentiometer provides immediate, fine-resolution feedback that stabilizes centering. As a programmable 32-bit digital servo, its control behavior can be tuned precisely to the application, noticeably improving repeatability. With 176 Ncm (24.9 oz-in) of torque, it offers strong reserves, and a transit time of 0.10 s/60° enables short cycle times with clean path control. The robust sealing protects against dust and temporary immersion, ensuring consistent operation in harsh environments. In a compact format, the drive combines protection, precision, and speed for efficiency-focused integrations.

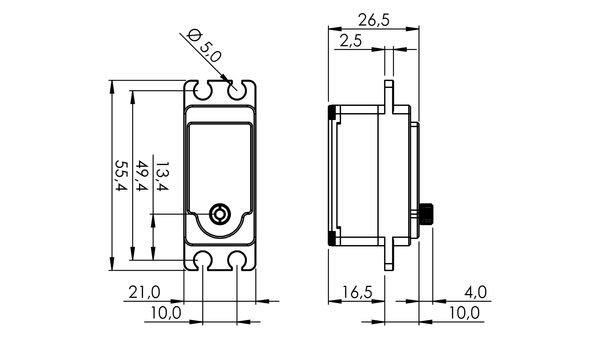

Width (mm): 21,00
Motor Type: BLDC
Encoder: Potentiometer
IP Protection Class: IP67
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 18,00
Setting Speed max. (sec/60 degrees): 0,10
Hitec Servo Series: DB-Series
Weight (gramm): 66,00
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 41,00
Height (mm): 26,50
Voltage min. (V): 6,00
Torque min. (kg/cm): 15,00
Setting Speed min. (sec/60 degrees): 0,12
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 175°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 28
Current Draw max. (mA): 4500
Torque min. (N/cm): 147,20
Torque max. (N/cm): 176,60
Housing: Rugged Aluminum
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Hardened Steel
