Beskrivning
Art.nr: 1-03218
Contents:

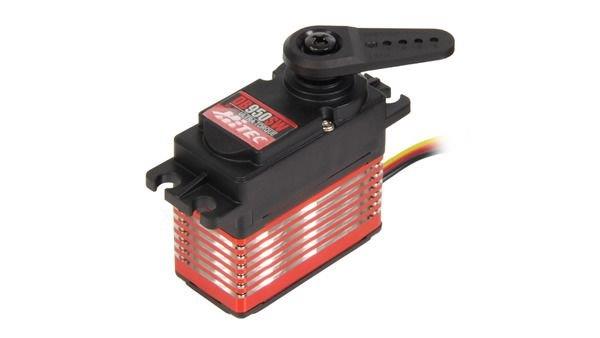

1x HiTEC Servo DB950SW
Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
Mounting hardware
For precise motion with high repeatability, this HiTEC servo motor pairs a brushless DC motor with a contact analog potentiometer. The drive responds with lively dynamics and delivers fine-resolution feedback that stabilizes centering and enables exact positioning. As a programmable 32-bit digital servo, its control behavior can be tuned precisely to the application, minimizing approach and settling times. With 392 Ncm (555.1 oz-in) of torque and a transit time of 0.14 s/60°, it supports quick cycles. A steel gear train increases long-term durability under varying loads, while the IP54 rating protects against dust and splashing water for broader usability in industrial settings. The DB950SW brings precise sensing, robust mechanics, and programmable intelligence together for confident control.

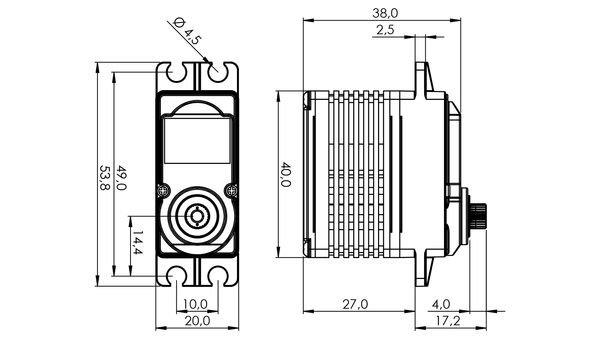

Width (mm): 20,00
Motor Type: BLDC
Encoder: Potentiometer
IP Protection Class: IP54
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 40,00
Setting Speed max. (sec/60 degrees): 0,14
Hitec Servo Series: DB-Series
Weight (gramm): 68,00
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 40,00
Height (mm): 38,50
Voltage min. (V): 4,80
Torque min. (kg/cm): 35,00
Setting Speed min. (sec/60 degrees): 0,23
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 175°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 35
Current Draw max. (mA): 4200
Torque min. (N/cm): 343,20
Torque max. (N/cm): 392,30
Housing: Engineering Plastic with Aluminum Heat Sink
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Hardened Steel
