Art.nr: 1-01191
Contents:

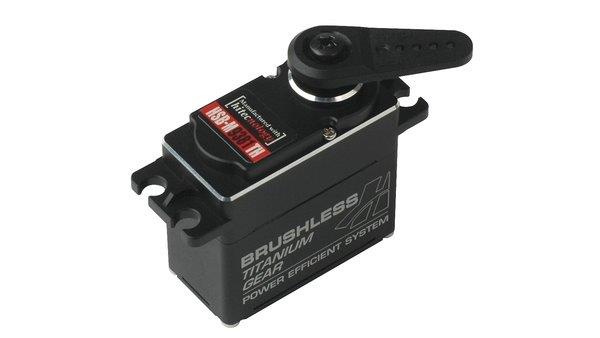

1x HiTEC Servo HSB-M9381TH
Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
Mounting hardware
Actuator applications demand precise feedback and high dynamics. The HiTEC servo motor HSB-M9381TH pairs a contactless magnetic encoder with an efficient brushless DC motor for fast, repeatable positioning. A proven PWM interface and programmability enable behavior tailored to diverse motion profiles. The 48.4 V supply range simplifies power design. At 7.4 V the digital servo reaches 0.14 s for 60° and delivers 333 Ncm of torque (≈472 oz-in / 29.45 lbf-in), suitable for forceful moves with defined stops. The titanium gear train operates with low wear and keeps backlash consistently low. Rated IP54, it remains reliable in environments with harmful dust and splashing water, ensuring consistent precision in industrial use.

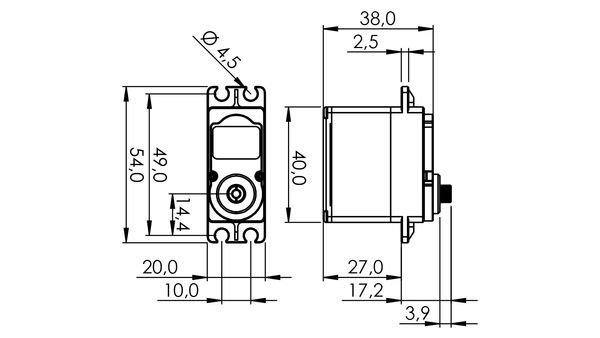

Width (mm): 20,00
Motor Type: BLDC
Encoder: Magnetic Encoder
IP Protection Class: IP54
Communication: PWM
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 34,00
Setting Speed max. (sec/60 degrees): 0,14
Hitec Servo Series: HSB-Series
Weight (gramm): 78,00
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 40,00
Height (mm): 38,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 34,00
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 300°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 27
Current Draw max. (mA): 2100
Torque min. (N/cm): 333,43
Torque max. (N/cm): 333,43
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Titanium Alloy
