Beskrivning
Art.nr: 1-01251
Contents:
1x HiTEC Servo HSB-M9382TH
Servo arm set (HD-LS, R-ML25)
Mounting hardware

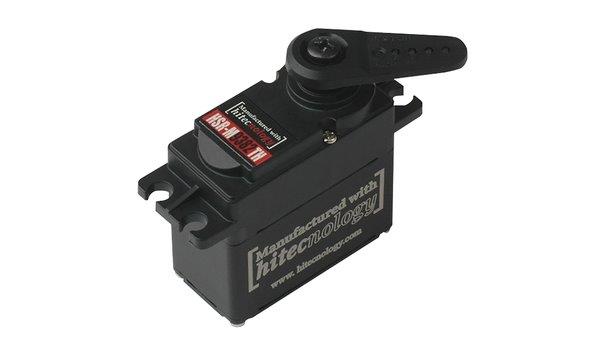

The HiTEC digital servo motor builds on a brushless DC drive and a magnetic encoder to deliver precise positioning and quick response. The HiTEC servo HSR-M9382TH transmits power through a titanium gear train and is programmable, for example the rotation angle, for precise, task-specific tuning. At 7.4 V the actuator achieves 0.14 s/60° and 333 Ncm (471.6 ozin) of torque, enabling dynamic accelerations with stable endpoints. The 4.08.4 V range provides sensible design headroom, while IP54 guards against dust and splashing water. Control is via PWM, ensuring straightforward integration with common controllers. This blend of high-resolution feedback, efficient drive, and robust power transmission forms a strong foundation for repeatable motion with high consistency.
The HFP-30 Servo Programmer (optional accessory) is not suitable for programming this servo; it is for testing the motion function only.
Width (mm): 20,00
Motor Type: BLDC
Encoder: Magnetic Encoder
IP Protection Class: IP54
Communication: PWM
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 34,00
Setting Speed max. (sec/60 degrees): 0,14
Hitec Servo Series: HSR-Series
Weight (gramm): 72,00
Horn Gear Spline: H25T (Ø6,0mm)

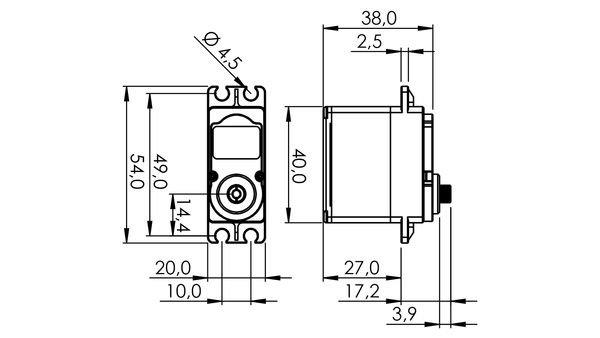

Length (mm): 40,00
Height (mm): 38,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 34,00
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 180°
Multi Turn: 3,5 Turns
Contniuos Rotation: Yes
Current Draw at idle (mA): 27
Current Draw max. (mA): 2100
Torque min. (N/cm): 333,43
Torque max. (N/cm): 333,43
Housing: Engineering Plastic with Aluminum Heat Sink
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Titanium Alloy
1x HiTEC Servo HSB-M9382TH
Servo arm set (HD-LS, R-ML25)
Mounting hardware
The HiTEC digital servo motor builds on a brushless DC drive and a magnetic encoder to deliver precise positioning and quick response. The HiTEC servo HSR-M9382TH transmits power through a titanium gear train and is programmable, for example the rotation angle, for precise, task-specific tuning. At 7.4 V the actuator achieves 0.14 s/60° and 333 Ncm (471.6 ozin) of torque, enabling dynamic accelerations with stable endpoints. The 4.08.4 V range provides sensible design headroom, while IP54 guards against dust and splashing water. Control is via PWM, ensuring straightforward integration with common controllers. This blend of high-resolution feedback, efficient drive, and robust power transmission forms a strong foundation for repeatable motion with high consistency.
The HFP-30 Servo Programmer (optional accessory) is not suitable for programming this servo; it is for testing the motion function only.
Width (mm): 20,00
Motor Type: BLDC
Encoder: Magnetic Encoder
IP Protection Class: IP54
Communication: PWM
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 34,00
Setting Speed max. (sec/60 degrees): 0,14
Hitec Servo Series: HSR-Series
Weight (gramm): 72,00
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 40,00
Height (mm): 38,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 34,00
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 180°
Multi Turn: 3,5 Turns
Contniuos Rotation: Yes
Current Draw at idle (mA): 27
Current Draw max. (mA): 2100
Torque min. (N/cm): 333,43
Torque max. (N/cm): 333,43
Housing: Engineering Plastic with Aluminum Heat Sink
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Titanium Alloy
