Beskrivning
Art.nr: 1-02852
Contents:
1x HiTEC Servo MD141SH
Servo arm set (MS-I25, MS-L25, MS-ML25)
Mounting hardware

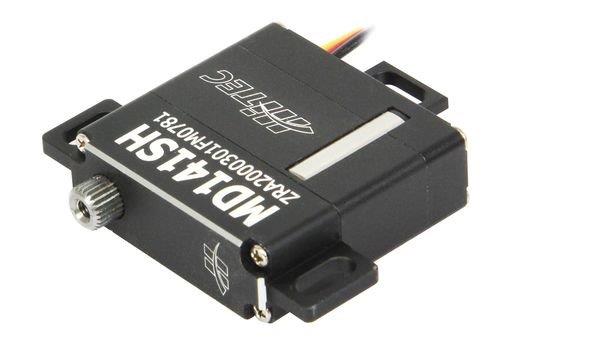

Designed for tight spaces, the HiTEC MD141SH servo motor delivers speed, precision, and durability in a flat-profile actuator. At only 10 mm (0.39 in) wide, it fits where standard housings wont, yet it moves decisively with 0.10 s/60°. A coreless motor provides crisp response, while a steel gear train transfers power reliably; torque reaches up to 68 Ncm for confident positioning under load. A contactless magnetic encoder ensures wear-free position feedback and consistent centering over the products life. The control behavior is programmable, so the servo can be tailored precisely to the application for smoother drive characteristics. Integration is straightforward via PWM/TTL, making it easy to drop into existing control architectures. The MD141SH combines a slim footprint with accurate, repeatable motion - ideal when compact dimensions and professional-grade performance are non-negotiable.

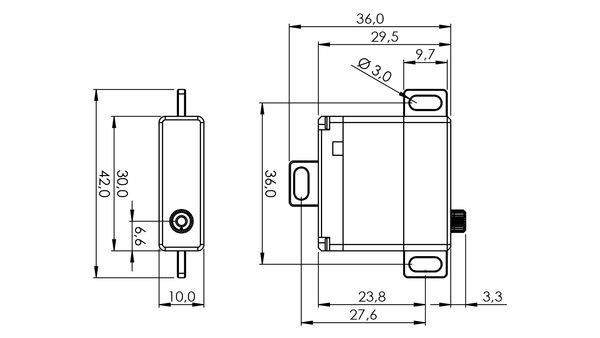

Width (mm): 10,00
Motor Type: Coreless
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 7,00
Setting Speed max. (sec/60 degrees): 0,10
Hitec Servo Series: MD-Series
Weight (gramm): 26,70
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 30,00
Height (mm): 29,50
Voltage min. (V): 6,00
Torque min. (kg/cm): 5,70
Setting Speed min. (sec/60 degrees): 0,13
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 30
Current Draw max. (mA): 2500
Torque min. (N/cm): 55,90
Torque max. (N/cm): 68,70
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Steel
