Art.nr: 1-01598
Contents:

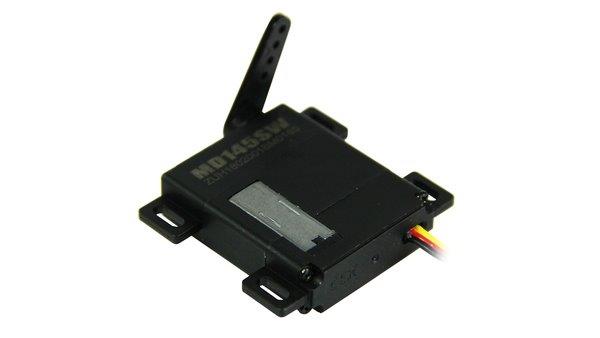

1x HiTEC Servo MD145SW
Servo arm set (MS-L25, MS-ML25)
Mounting hardware

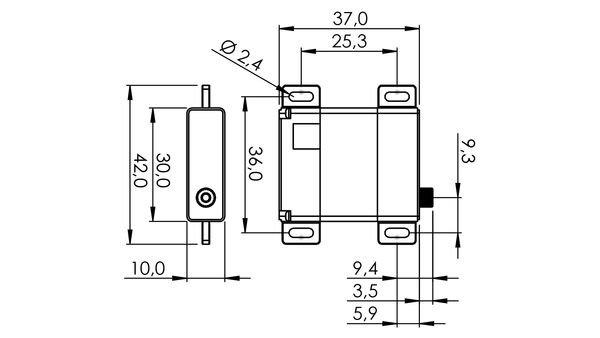

Compact size, confident performance: The HiTEC servo motor delivers precise motion in tight spaces and fits into dense layouts with 30.0 × 10.0 × 37.0 mm (1.18 × 0.39 × 1.46 in). A contactless magnetic encoder provides wear-free, accurate position feedback, enabling repeatable actuator moves. The brushed motor converts commands into steady torque with smooth running. Programmability makes it easy to adapt behavior to specific motion profiles. The 3.58.4 V supply range adds flexibility to power design. At 7.4 V the digital servo reaches 0.14 s for 60° and develops 68 Ncm of torque, suitable for quick sequences with defined stops. The steel gear train transfers power with lasting precision. HiTEC combines small footprint, clean feedback, and dependable torque delivery for compact, demanding drive tasks.
Width (mm): 10,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 7,00
Setting Speed max. (sec/60 degrees): 0,14
Hitec Servo Series: MD-Series
Weight (gramm): 26,50
Horn Gear Spline: H25T (Ø5,0mm)
Length (mm): 30,00
Height (mm): 37,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 4,90
Setting Speed min. (sec/60 degrees): 0,21
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 2500
Torque min. (N/cm): 48,10
Torque max. (N/cm): 68,70
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Steel
