Beskrivning
Art.nr: 1-03090
Contents:
1x HiTEC Servo MD146SH
Servo arm set (MS-L25, MS-ML25)
Mounting hardware

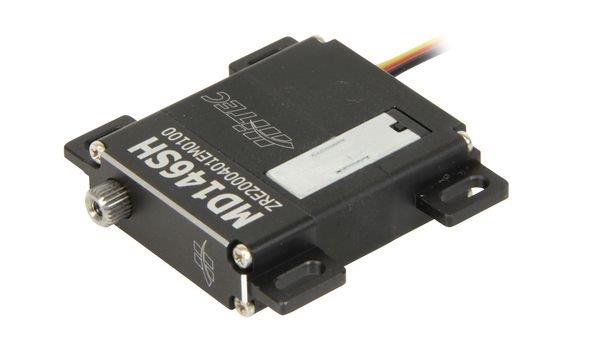

The HiTEC MD146SH servo motor delivers precise positioning and dependable force in space-constrained applications. Its brushed motor reacts immediately, executing 60° moves in 0.13 s, while the steel gear train transfers torque reliably; up to 68 Ncm ensures confident actuation and holding under load. A contactless magnetic encoder provides wear-free feedback and stable centering, and the flat 10 mm (0.39 in) profile simplifies installation in very narrow cavities. The wide 3.58.4 V operating range streamlines power connection, and the proven PWM/TTL interface makes integration straightforward. This servo brings together speed, stability, and easy integration for professional use. Deploy the MD146SH where precision has to fit into minimal space.

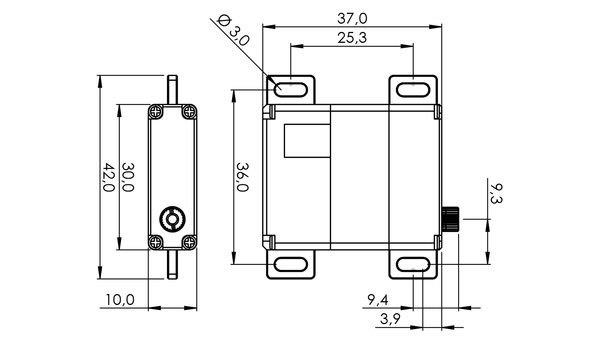

Width (mm): 10,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 7,00
Setting Speed max. (sec/60 degrees): 0,13
Hitec Servo Series: MD-Series
Weight (gramm): 31,00
Horn Gear Spline: H25T (Ø5,0mm)
Length (mm): 30,00
Height (mm): 37,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 5,90
Setting Speed min. (sec/60 degrees): 0,15
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 2600
Torque min. (N/cm): 57,90
Torque max. (N/cm): 68,70
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Steel
