Beskrivning
Art.nr: 1-01247
Contents:

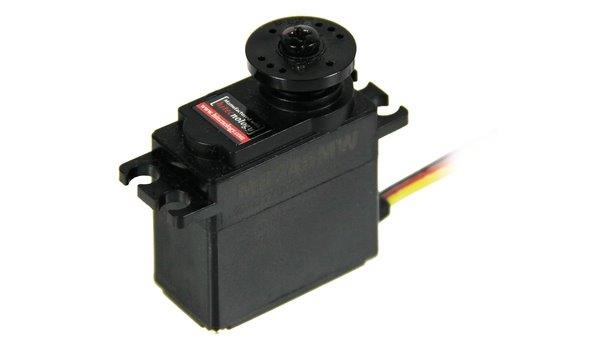

1x HiTEC Servo MD245MW
Servo arm (M-O25)
Mounting hardware
Fast, precise, and compact: The HiTEC servo motor MD245MW delivers repeatable positioning with crisp response. A contactless magnetic encoder provides wear-free, high-resolution position feedback. The coreless, low-inertia motor turns commands into agile motion while running smoothly. The 3.58.4 V supply range simplifies power architecture and leaves room for performance tuning. At 7.4 V, the digital servo reaches 0.11 s for 60° and provides 62 Ncm of torque, ideal for rapid sequences with precise stops. The metal gear train transfers power reliably over the long term. With programmability, control behavior can be tailored to practical motion profiles.

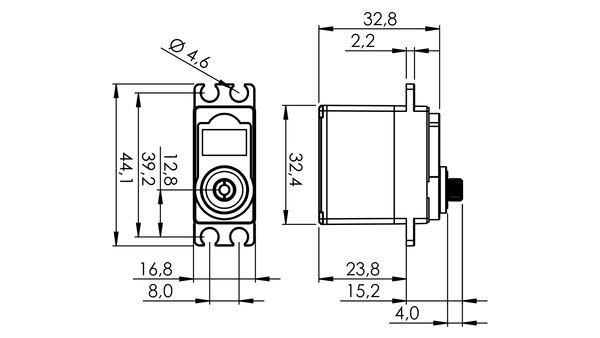

Width (mm): 16,80
Motor Type: Coreless
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 6,40
Setting Speed max. (sec/60 degrees): 0,11
Hitec Servo Series: MD-Series
Weight (gramm): 32,60
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 32,40
Height (mm): 32,80
Voltage min. (V): 4,80
Torque min. (kg/cm): 4,20
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 1600
Torque min. (N/cm): 41,19
Torque max. (N/cm): 62,76
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Metal
