Beskrivning
Art.nr: 1-03052
Contents:

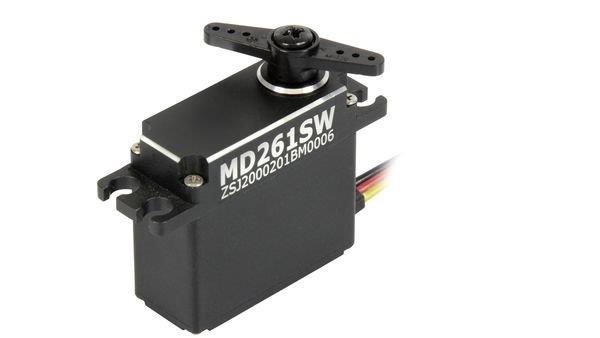

1x HiTEC Servo MD261SW
Servo arm (M-I25)
Mounting hardware
The HiTEC digital servo motor uses a non-contact magnetic encoder for wear-free position feedback and precise centering. Its programmability lets you tune control parameters precisely to your application, enabling the actuator to operate dynamically and with fine sensitivity. At 7.4 V, the brushed motor achieves 0.19 s per 60° and delivers 98 Ncm of torque, enabling fast positioning with high force. The wide 3.58.4 V supply range simplifies integration across diverse systems. A steel gear train ensures consistently reliable power transmission. The MD261SW brings precision and speed together for compact applications.

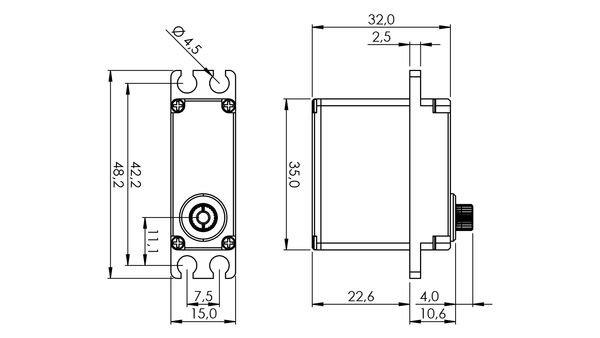

Width (mm): 15,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 10,00
Setting Speed max. (sec/60 degrees): 0,19
Hitec Servo Series: MD-Series
Weight (gramm): 50,60
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 35,00
Height (mm): 32,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 6,50
Setting Speed min. (sec/60 degrees): 0,30
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 2100
Torque min. (N/cm): 63,80
Torque max. (N/cm): 98,10
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Steel
