Beskrivning
Art.nr: 1-01924
Contents:

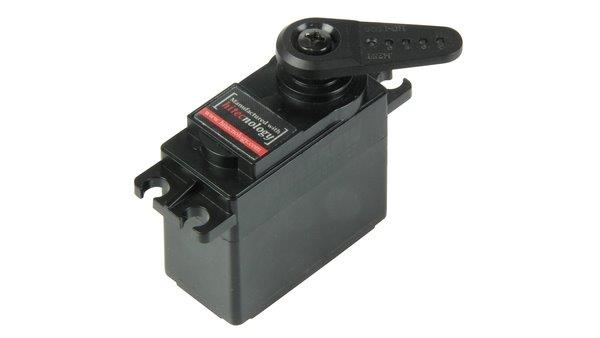

1x HiTEC Servo MD485HW
Servo arm (HD-IM25, HD-LS25, HD-OS25, HD-X25)
Mounting hardware
Responsive, precise, and easy to integrate, the HiTEC digital servo motor uses a non-contact magnetic encoder for wear-free position feedback and clean centering. Through the proven PWM and TTL interfaces, the actuator drops into existing controllers without detours, while programmability enables exact curve tuning. At 7.4 V, the brushed motor achieves a 0.15 s per 60° transit time and delivers 72 Ncm of torque, enabling fast positioning with dependable force. The wide 3.58.4 V supply range provides flexibility and supports diverse system architectures. A high-strength plastic gear train ensures consistently reliable power transmission. The MD485HW stands for speed and control in a compact servo.

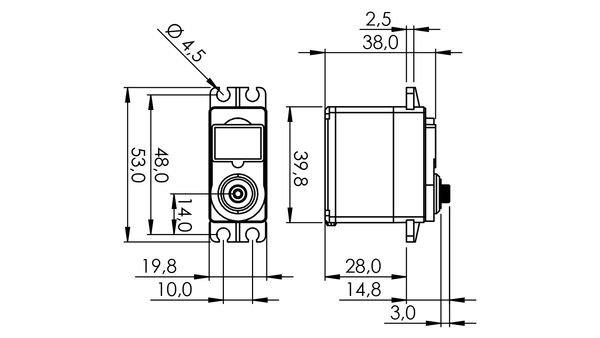

Width (mm): 20,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 7,40
Setting Speed max. (sec/60 degrees): 0,15
Hitec Servo Series: MD-Series
Weight (gramm): 43,30
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 40,00
Height (mm): 38,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 4,80
Setting Speed min. (sec/60 degrees): 0,20
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 1500
Torque min. (N/cm): 47,07
Torque max. (N/cm): 72,57
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Heavy Duty Polyamide
