Beskrivning
Art.nr: 1-01600
Contents:

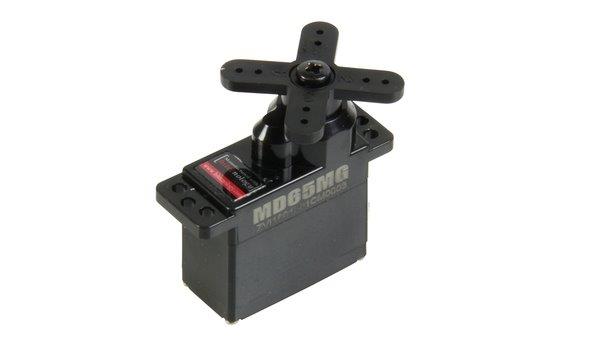

1x HiTEC Servo MD65MG
Servo arm (MS-I25, MS-L25, MS-X25)
Mounting hardware
More speed and precision in a compact format: This HiTEC servo uses a non-contact magnetic encoder for wear-free position feedback and clean centering. Via the proven PWM/TTL interface, the actuator integrates into existing controllers seamlessly. Programming enables precise parameterization for your application. At 6 V, the metal-core brushed motor achieves 0.11 s per 60° and delivers 21 Ncm of torque, enabling fast positioning with dependable force. The wide 3.58.4 V supply range provides flexibility in power design and supports diverse system architectures. A metal gear train with ball bearings ensures long service life, smooth running, and reliable power transmission. As a result, the servo delivers speed and control in a slim, integration-friendly actuator.

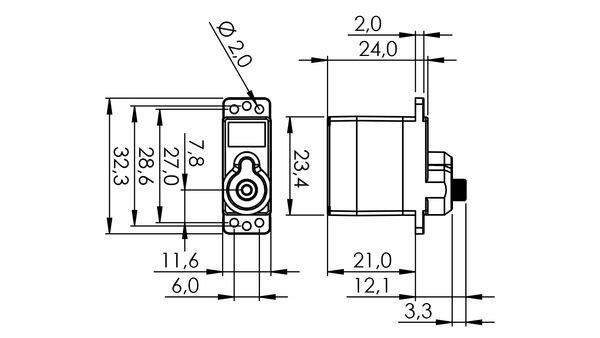

Width (mm): 11,60
Motor Type: Cored Metal Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 6,00
Torque max. (kg/cm): 2,20
Setting Speed max. (sec/60 degrees): 0,11
Hitec Servo Series: MD-Series
Weight (gramm): 11,50
Horn Gear Spline: H25T (Ø5,0mm)
Length (mm): 23,60
Height (mm): 26,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 1,80
Setting Speed min. (sec/60 degrees): 0,14
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 1200
Torque min. (N/cm): 17,65
Torque max. (N/cm): 21,57
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Metal
