Beskrivning
Art.nr: 1-03277
Contents:
1x HiTEC Servo MD70MH
Servo arm set (MS-I25, MS-L25, MS-X25)
Mounting hardware
The HiTEC MD70MH servo uses a non-contact magnetic encoder for wear-free feedback and clean centering. Via the proven PWM/TTL interface, the actuator integrates quickly into existing controllers. At 7.4 V, the metal-core brushed motor achieves 0.12 s per 60° and 37 Ncm of torque. The 3.58.4 V range supports flexible power designs. Programmable and robust, its metal gear train ensures reliable power transmission.

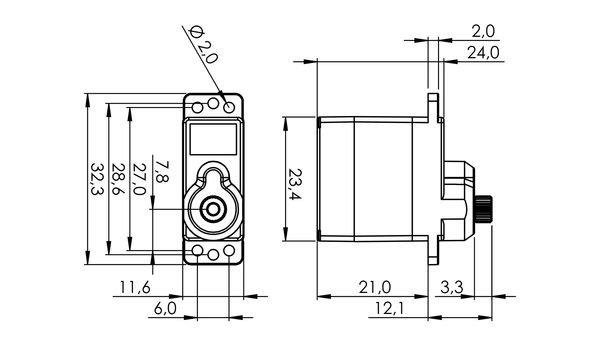

Width (mm): 11,60
Motor Type: Cored Metal Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 3,80
Setting Speed max. (sec/60 degrees): 0,12
Hitec Servo Series: MD-Series
Weight (gramm): 13,00
Horn Gear Spline: H25T (Ø5,0mm)
Length (mm): 23,60
Height (mm): 24,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 3,10
Setting Speed min. (sec/60 degrees): 0,15
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 1300
Torque min. (N/cm): 30,40
Torque max. (N/cm): 37,30
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Metal
