Beskrivning
Art.nr: 1-03227
Contents:

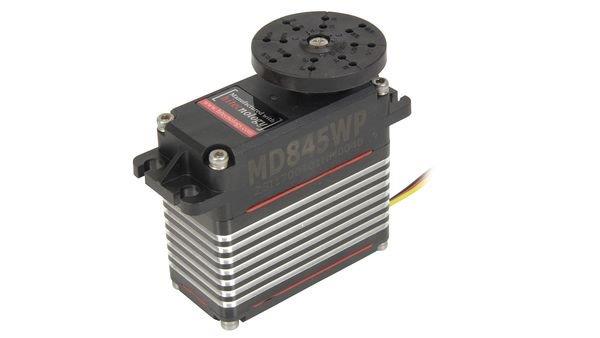

1x HiTEC Servo MD845WP
Servo arm set (2x Q-OA, Q-XA, Q-MIA)
Mounting hardware
With IP67 protection, the HiTEC servo is purpose-built for industrial applications in a compact form factor. The sealed design withstands dust and temporary immersion, while a non-contact magnetic encoder provides wear-free position feedback and clean centering. Through proven PWM and TTL interfaces, the actuator integrates seamlessly into existing controllers, and its programmability streamlines precise tuning of motion profiles. At 7.4 V, the brushed motor reaches 0.17 s per 60° and delivers 490 Ncm, enabling fast, controlled positioning. The 3.58.4 V operating range supports flexible power architectures in machinery and vehicles. A robust steel gear train ensures smooth running and reliable torque transmission. The MD845WP unites protection, performance, and precision in a compact industrial servo.

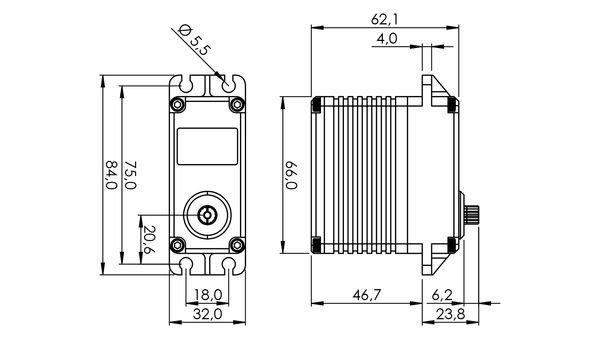

Width (mm): 32,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP67
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 50,00
Setting Speed max. (sec/60 degrees): 0,17
Hitec Servo Series: MD-Series
Weight (gramm): 228,90
Horn Gear Spline: 15T (Ø8,0mm)
Length (mm): 66,00
Height (mm): 62,10
Voltage min. (V): 4,80
Torque min. (kg/cm): 32,50
Setting Speed min. (sec/60 degrees): 0,26
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 10000
Torque min. (N/cm): 318,72
Torque max. (N/cm): 490,33
Housing: Engineering Plastic with Aluminum Heat Sink
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Steel
