Beskrivning
Art.nr: 1-01656
Contents:
1x HiTEC Servo MD85MG
Servo arm set (M-I, M-X, M-O)
Mounting hardware
The HiTEC MD85MG servo motor uses a non-contact magnetic encoder for wear-free position feedback and clean centering. Via proven PWM/TTL interfaces, the actuator integrates directly into existing controllers, and its programmability enables precise parameter tuning. The brushed motor achieves 0.13 s per 60° and delivers up to 42 Ncm of torque, ensuring reliable dynamic motion. A wide 3.58.4 V supply range supports flexible power architectures and simplifies system design. A metal gear train with ball bearings provides long service life, smooth running, and secure power transmissioneven with frequent load reversals. In this way, the MD85MG combines speed and control in a compact servo for modern applications.

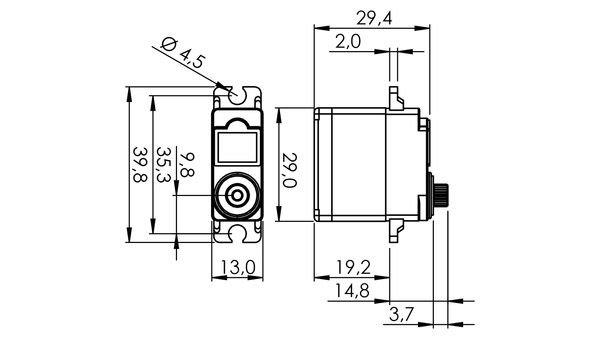

Width (mm): 13,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 6,00
Torque max. (kg/cm): 4,30
Setting Speed max. (sec/60 degrees): 0,13
Hitec Servo Series: MD-Series
Weight (gramm): 21,50
Horn Gear Spline: H24T (Ø6,0mm)
Length (mm): 29,00
Height (mm): 30,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 3,60
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: No
Current Draw at idle (mA): 30
Current Draw max. (mA): 1600
Torque min. (N/cm): 35,30
Torque max. (N/cm): 42,17
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Metal
