Beskrivning
Art.nr: 1-01237
Contents:
1x HiTEC Servo MD89MW
Servo arm set (M-O25, R-ML25)
Mounting hardware

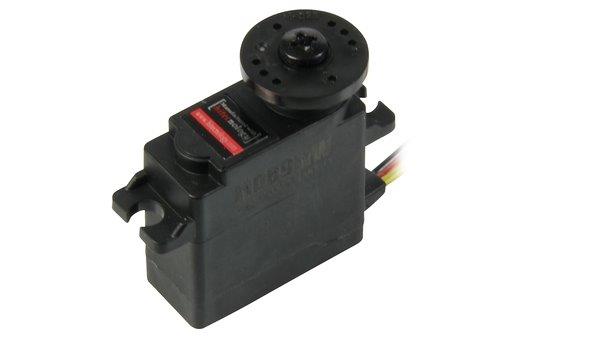

The HiTEC MD89MW is a digital servo motor designed for precise angular motion in tight spaces. A coreless motor provides fine response, and position feedback is handled by a contactless magnetic encoder with stable signal quality. The metal gear train transmits motion consistently and is built for sustained operation. At 7.4 V the servo delivers 83 Ncm of torque and achieves 0.11 s for 60°. Programmability allows key parameters to be adapted to the task, such as response behavior or travel range. PWM/TTL is available for control. This actuator suits light to medium mechanisms that require repeatable positioning, short transit times, and low-wear sensing.

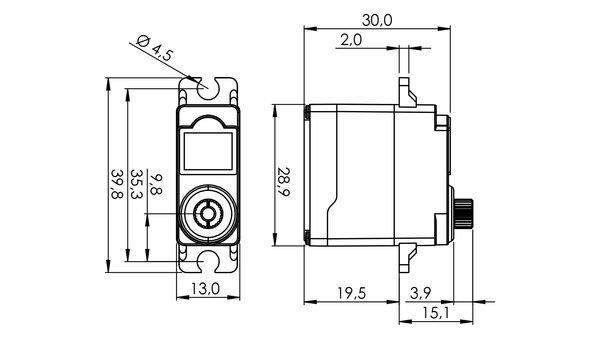

Width (mm): 13,00
Motor Type: Coreless
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 8,50
Setting Speed max. (sec/60 degrees): 0,11
Hitec Servo Series: MD-Series
Weight (gramm): 25,50
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 29,00
Height (mm): 30,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 5,30
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 30
Current Draw max. (mA): 2700
Torque min. (N/cm): 51,98
Torque max. (N/cm): 83,36
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Metal
