Beskrivning
Art.nr: 1-03166
Contents:

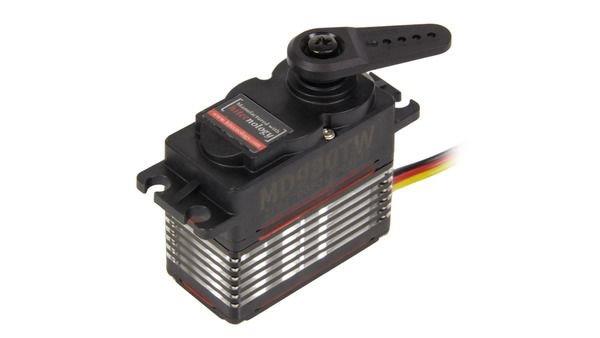

1x HiTEC Servo MD980TW
Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25, HD-IL25, HD-LL25, HD-IG25, HD-LG25)
Mounting hardware
The HiTEC servo motor combines high force with precise feedback and direct controllability. A non-contact magnetic encoder provides wear-free position data and clean centering, ensuring repeatable behavior. Via the proven PWM/TTL interface, the system connects to existing controllers without detours. Its programmability enables precise parameter adjustment for varying loads. At 7.4 V, the coreless motor reaches 0.17 s per 60° and develops 431 Ncm of torque, keeping rapid moves under load under control. The wide 3.58.4 V supply range supports flexible power concepts. A titanium gear train transfers power efficiently and ensures smooth, long-lasting operation. Thus, the MD980TW unites speed, precision, and pulling power in a compact servo for demanding motion tasks.

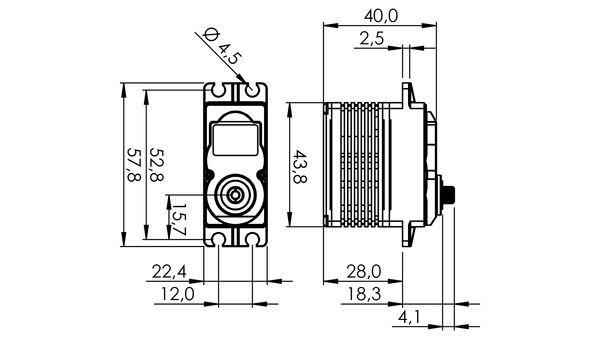

Width (mm): 22,40
Motor Type: Coreless
Encoder: Magnetic Encoder
IP Protection Class: IP54
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 44,00
Setting Speed max. (sec/60 degrees): 0,17
Hitec Servo Series: MD-Series
Weight (gramm): 75,80
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 43,80
Height (mm): 40,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 26,00
Setting Speed min. (sec/60 degrees): 0,28
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 30
Current Draw max. (mA): 6200
Torque min. (N/cm): 254,97
Torque max. (N/cm): 431,49
Housing: Engineering Plastic with Aluminum Heat Sink
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Titanium Alloy
