Beskrivning
Art.nr: 1-01640
Contents:

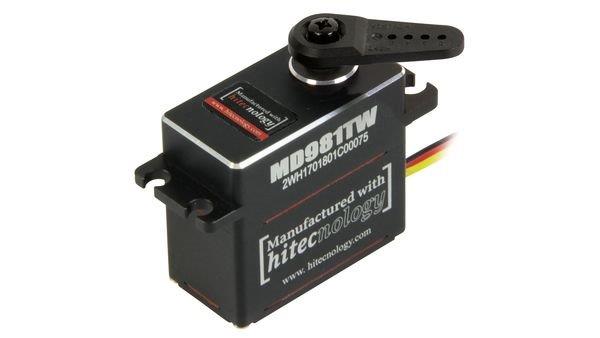

1x HiTEC Servo MD981TW
Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25, HD-IL25, HD-LL25, HD-IG25, HD-LG25)
Mounting hardware
The HiTEC servo delivers speed and precision in a compact form. A non-contact magnetic encoder ensures wear-free position feedback and clean centering. Through proven PWM/TTL, the actuator integrates into existing controllers, and its programmability enables precise parameterization. At 7.4 V, the coreless motor achieves 0.17 s per 60° and develops 431 Ncm of torque. The 3.58.4 V range supports flexible power concepts. A titanium gear train transfers power efficiently. With IP54 protection, the servo resists dust and splashing water. The MD981TW concentrates speed and control for precise motion in tight spaces.

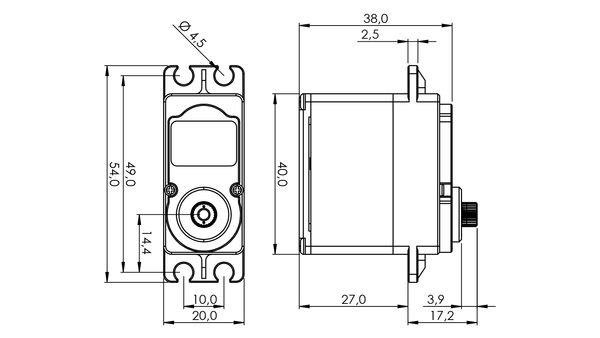

Width (mm): 22,40
Motor Type: Coreless
Encoder: Magnetic Encoder
IP Protection Class: IP54
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 44,00
Setting Speed max. (sec/60 degrees): 0,17
Hitec Servo Series: MD-Series
Weight (gramm): 94,20
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 43,80
Height (mm): 40,00
Voltage min. (V): 4,80
Torque min. (kg/cm): 26,00
Setting Speed min. (sec/60 degrees): 0,28
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 30
Current Draw max. (mA): 6200
Torque min. (N/cm): 254,97
Torque max. (N/cm): 431,49
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Titanium Alloy
