Beskrivning
Art.nr: 1-03109
Contents:

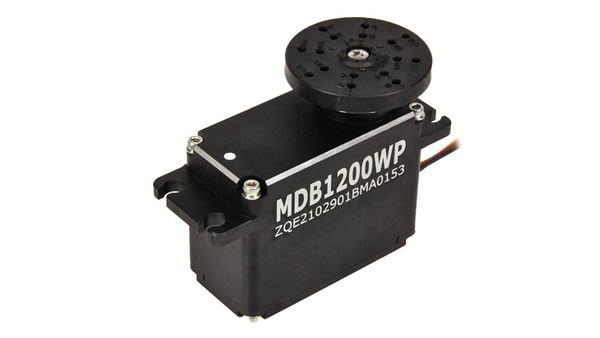

1x HiTEC Servo MDB1200WP
Servo arm set (2x Q-OA, 1x Q-XA)
Mounting hardware
When robust industrial performance must meet precise control, the HiTEC servo motor MDB1200WP is the right choice. This programmable digital servo provides stable position feedback with high repeatability thanks to its contactless magnetic encoder, while the brushless DC motor (BLDC) executes commands immediately and efficiently. At 7.4 V, the actuator achieves 0.18 s per 60° and delivers 1078 Ncm of torque, enabling fast, well-controlled load changes. The proven PWM/TTL interface simplifies integration into existing control systems, and the wide 4.08.4 V supply range supports flexible power concepts. Rated IP67, it is reliably protected against dust and temporary immersion, and the hardened steel gear train transmits power efficiently for durable operation. The MDB1200WP brings together precision and pulling power in a compact industrial servo for demanding motion tasks.

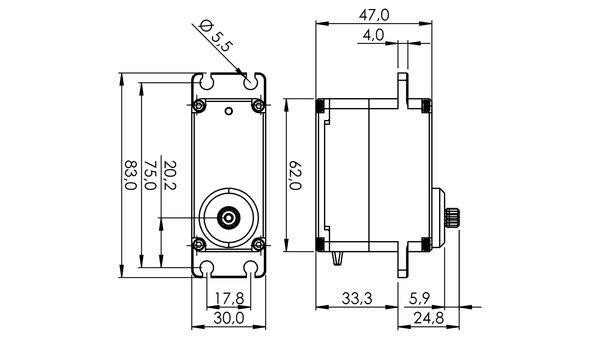

Width (mm): 30,00
Motor Type: BLDC
Encoder: Magnetic Encoder
IP Protection Class: IP67
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 110,00
Setting Speed max. (sec/60 degrees): 0,18
Hitec Servo Series: MDB-Series
Weight (gramm): 260,00
Horn Gear Spline: 15T (Ø8,0mm)
Length (mm): 62,00
Height (mm): 47,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 100,00
Setting Speed min. (sec/60 degrees): 0,22
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 20
Current Draw max. (mA): 4300
Torque min. (N/cm): 981,00
Torque max. (N/cm): 1079,10
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Hardened Steel
