Beskrivning
Art.nr: 1-03276
Contents:
1x HiTEC Servo MDB89MH
Servo arm set (M-O25, R-ML25)
Mounting hardware
Built for precise, repeatable motion, the HiTEC servo motor MDB89MH pairs a contactless magnetic encoder for wear-free, high-resolution feedback with a brushless DC drive that delivers efficiency and long service life. Its metal geartrain provides direct power transfer for smooth, consistent positioning, while the servo reacts crisply at 0.13 s/60° to follow setpoint changes with confidence. Up to 1.22 Nm (172.8 oz-in) of torque supplies ample headroom for accurate moves without sacrificing finesse. The wide 3.58.4 V supply range eases integration across diverse control environments, making this actuator a compact, dynamic solution wherever precision and robustness matter.

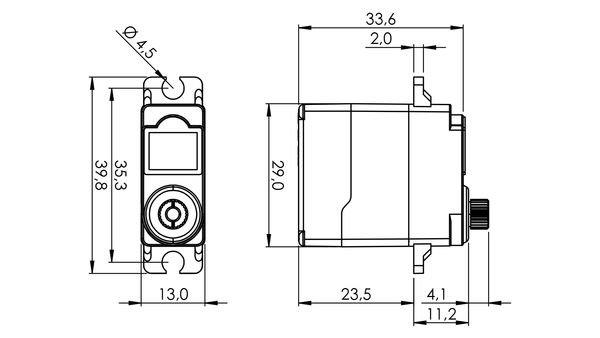

Width (mm): 13,00
Motor Type: BLDC
Encoder: Magnetic Encoder
IP Protection Class: IP4X
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 12,50
Setting Speed max. (sec/60 degrees): 0,13
Hitec Servo Series: MDB-Series
Weight (gramm): 33,60
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 29,00
Height (mm): 34,70
Voltage min. (V): 6,00
Torque min. (kg/cm): 10,50
Setting Speed min. (sec/60 degrees): 0,17
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 175°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 30
Current Draw max. (mA): 3000
Torque min. (N/cm): 103,00
Torque max. (N/cm): 122,60
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Metal
