Beskrivning
Art.nr: 1-03225
Contents:

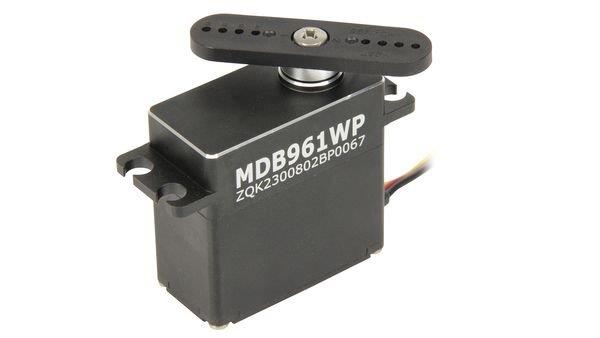

1x HiTEC Servo MDB961WP
Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
Mounting hardware
The HiTEC MDB961WP servo motor combines efficiency, precision, and rugged durability for demanding applications. Its efficient brushless DC motor delivers quick response, while the hardened steel gear train transmits power reliably; up to 539 Ncm provides confident actuation and holding torque. A contactless magnetic encoder offers wear-free, repeatable position feedback, enabling the actuator to execute commands crisply at 0.15 s/60°. The IP67-rated design is dust-tight and protected against temporary immersion, keeping operation dependable in wet, splash-prone environments. The MDB961WP brings robust sealing together with strong performance and precise feedback in compact installation spaces.

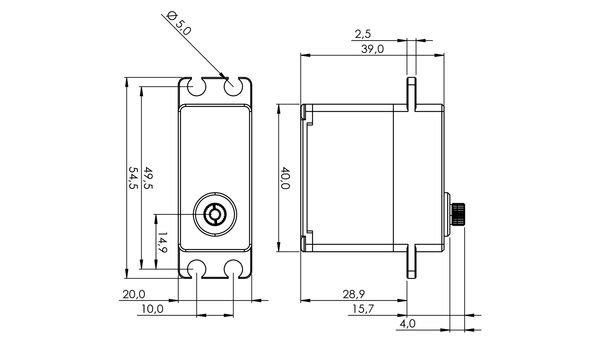

Width (mm): 20,00
Motor Type: BLDC
Encoder: Magnetic Encoder
IP Protection Class: IP67
Communication: PWM
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 55,00
Setting Speed max. (sec/60 degrees): 0,15
Hitec Servo Series: MDB-Series
Weight (gramm): 90,00
Horn Gear Spline: H25T (Ø6,0mm)
Length (mm): 40,00
Height (mm): 39,00
Voltage min. (V): 6,00
Torque min. (kg/cm): 55,00
Setting Speed min. (sec/60 degrees): 0,18
Angle Standard (degrees): ± 60°
Rotation Angle programmable (degrees): 320°
Multi Turn: not possible
Contniuos Rotation: no
Current Draw at idle (mA): 35
Current Draw max. (mA): 8000
Torque min. (N/cm): 539,60
Torque max. (N/cm): 539,60
Housing: Aluminum Alloy
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Hardened Steel
