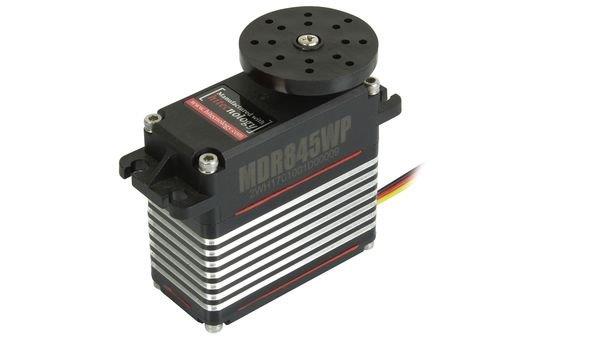

Hitec Servo MDR845WP (360°)
2 219 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-01329
Contents:
1x HiTEC Servo MDR845WP
Servo arm set (2x Q-OA, Q-XA, Q-MIA)
Mounting hardware
The HiTEC servo motor MDR845WP enables continuous rotation and multi-turn travel up to ±1800° for applications requiring endless positioning. This programmable digital servo uses a contactless magnetic encoder for wear-free, repeatable position data, while the brushed motor executes commands directly with fine controllability. At 7.4 V, the actuator achieves 0.17 s per 60° and delivers 490 Ncm (43.37 lbfin) of torque, ensuring controlled, dynamic motion over multiple revolutions. The proven PWM/TTL interface simplifies integration into existing control systems, and the 4.08.4 V supply range provides design flexibility. Rated IP67, it is dust-tight and resistant to temporary immersion, ensuring reliable operation in humid, splash-exposed environments. The result is a servo that combines flexible kinematics with precise control and stable communication.

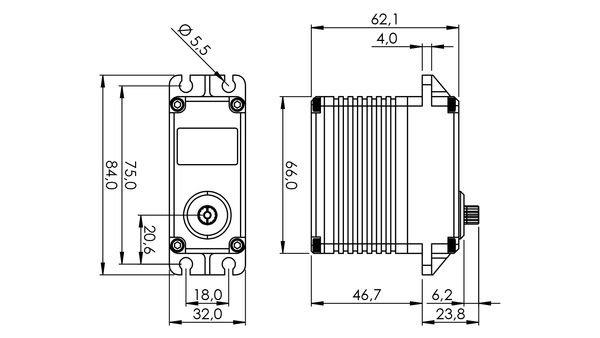

Width (mm): 32,00
Motor Type: Cored Carbon Brush
Encoder: Magnetic Encoder
IP Protection Class: IP67
Communication: PWM / TTL
Servo Type: Digital
Voltage max. (V): 7,40
Torque max. (kg/cm): 50,00
Setting Speed max. (sec/60 degrees): 0,17
Hitec Servo Series: MD-Series
Weight (gramm): 229,40
Horn Gear Spline: 15T (Ø8,0mm)
Length (mm): 66,00
Height (mm): 62,10
Voltage min. (V): 4,80
Torque min. (kg/cm): 32,50
Setting Speed min. (sec/60 degrees): 0,26
Angle Standard (degrees): ± 1800°
Contniuos Rotation: Yes
Current Draw at idle (mA): 30
Current Draw max. (mA): 10000
Torque min. (N/cm): 318,72
Torque max. (N/cm): 490,33
Housing: Engineering Plastic with Aluminum Heat Sink
Connector: Hitec 3 Pin (Uni)
Gearing (characteristic): Steel
