KONECT 32 kg CORELESS HV Digital servo (32kg-0.10s/60°)

KONECT 32Kg

CORELESS (coreless motor) servo KONECT 32Kg designed for recreational and beginner racers / modellers at speeds up to 0.10s and 32kg / cm of thrust / torque. The servo uses a combined metal and composite housing to achieve lower weight, while the CORELESS (coreless motor) and steel / aluminum gears ensure high performance and durability. The servo is equipped with a JR connector.

Properties

Ideal for scale 1 / 10,1 / 8 On-Road and Off cars, boats and the like
25teeth output shaft
SPECIFICATIONS

Type: Digital
Bearing: BB
Motor type: CORELESS (coreless motor)
Transmission type: metal
Transmission material: Steel & aluminum
Control system: pulse width regulation
Working frequency: 1520µs / 330hz
Operating voltage: DC 4.8 - 8.4V
Operating temperature range: -10 to +50 degrees
Operating speed (6.0V): 0.12s / 60 degrees without load
Operating speed (7.4V): 0.10s / 60 degrees without load
Thrust / Torque (6.0V): 25.20kg.cm
Thrust / Torque (7.4V): 32.3kg.cm
Potentiometer drive: direct drive

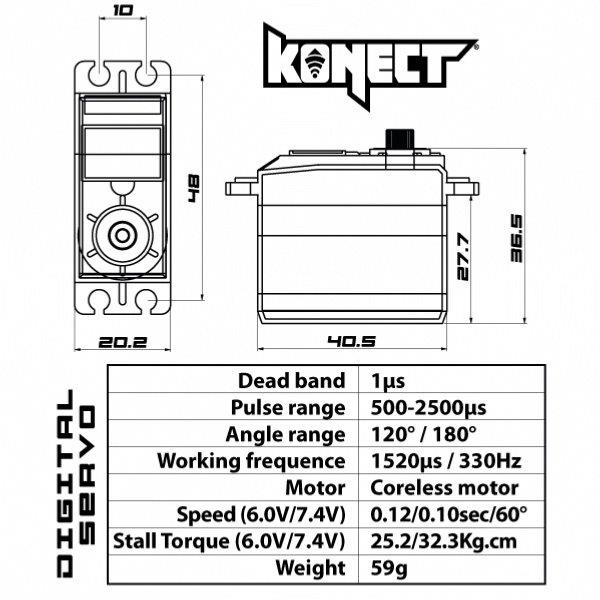

Dimensions: 40.5 x 20.2 x 36.5mm
Weight: 59.0g
