Hitec Linear Actuator HLS12-100100

The HiTEC linear actuator HLS12-100100 cleanly executes long 100 mm (3.94 in) strokes and fits into tight builds thanks to its compact footprint. A brushed motor with a metal core drives the metal gear train, transmitting power efficiently to the stroke. The proven PWM interface enables quick control, while programmability provides room for different motion profiles. A 100:1 gear ratio delivers steady 16.1 mm/s (0.63 in/s) at 7.4 V and up to 60.56 N (13.61 lbf) of thrust, achieving repeatable positioning under load. The 4.0–8.4 V operating range simplifies power planning. This linear actuator blends dynamics, robust force transmission, and clear signaling into an efficient drive for precise linear motion.

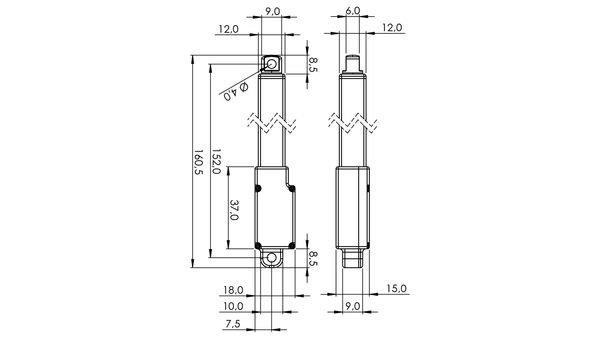

Length (mm): 152,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 56,00
Communication: PWM
output length (mm): 100
Transmission Ratio: 100:1
Torque max. lifted at 6V (N): 41,19
Torque min. (N): 39,23
Torque max. (N): 60,80
Side load max. (N): 15,00
Speed min. (mm/s): 10,40
Speed max. (mm/s): 16,10
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
