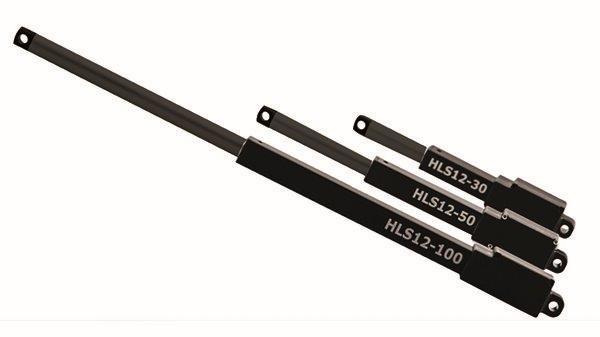

Hitec Linear Actuator HLS12-10050
1 689 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-02459
Contents:
1x HiTEC Linear actuator HLS12-10050
Mounting hardware

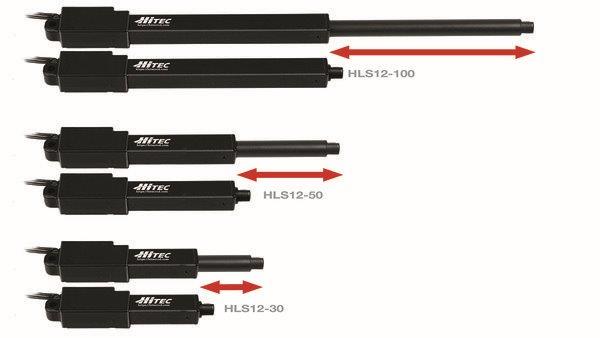

The HiTEC HLS12 10050 is a very compact linear actuator designed for precise and dynamic linear motion. Control is provided via a PWM interface that is compatible with common servo controllers, enabling easy integration into existing systems. This allows the push and pull linear motion along the stroke axis to be controlled in a targeted manner over the entire 100 mm stroke, from fully retracted to fully extended.
Inside, a brushed motor with metal core operates in combination with a gearbox featuring a gear ratio of 50 to 1 and programmable digital electronics. The gear ratio supports fast adjustment movements while maintaining finely resolved positioning. This combination delivers smooth and precise linear motion with high repeatability in a particularly compact form factor.

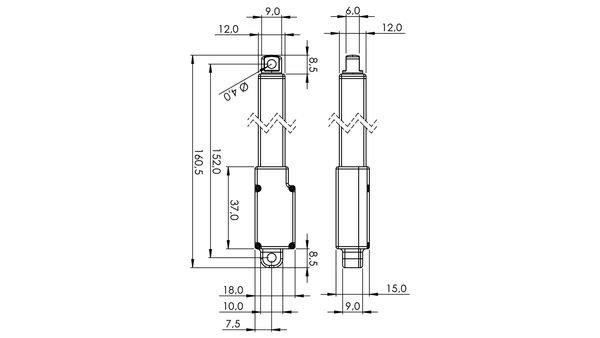

Length (mm): 152,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 56,00
Communication: PWM
output length (mm): 100
Transmission Ratio: 50:1
Torque max. lifted at 6V (N): 21,57
Torque min. (N): 19,61
Torque max. (N): 30,40
Side load max. (N): 15,00
Speed min. (mm/s): 20,00
Speed max. (mm/s): 30,90
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
