Hitec Linear Actuator HLS12-30380
1 569 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-02455
Contents:
1x HiTEC Linear actuator HLS12-30380
Mounting hardware
The HiTEC linear actuator HLS12-30380 brings precise linear motion in a compact footprint and integrates quickly via its proven PWM interface. This servo motor uses a brushed motor with a metal core and a durable metal gear train to ensure long-lasting power transmission and clean starts. Programmable behavior adds application flexibility without complicating control. A 30 mm stroke (1.18 in) working through a 380:1 gear ratio delivers finely metered feeds at 4.1 mm/s (0.16 in/s), while the actuator provides up to 218 N of thrust for confident force delivery in tight spaces. The balanced combination of drive, gearing, and control yields repeatable positioning and a smooth, controlled response. When clear signals, controlled dynamics, and compact integration matter, this HiTEC servo is a strong choice for precise, reliable linear motion.

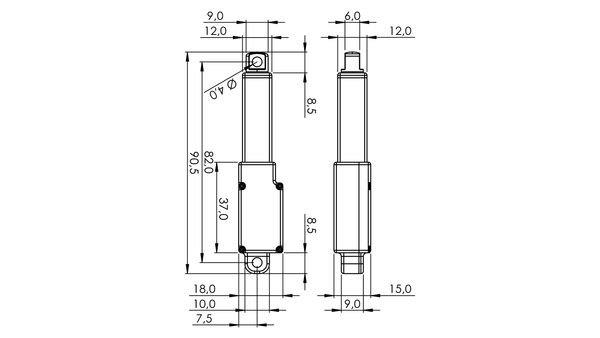

Length (mm): 82,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 34,00
Communication: PWM
output length (mm): 30
Transmission Ratio: 380:1
Torque max. lifted at 6V (N): 117,68
Torque min. (N): 141,22
Torque max. (N): 217,71
Side load max. (N): 40,00
Speed min. (mm/s): 2,60
Speed max. (mm/s): 4,10
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
