Hitec Linear Actuator HLS12-50100
1 629 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-03233
Contents:
1x HiTEC Linear actuator HLS12-50100
Mounting hardware
The HiTEC linear actuator HLS12-50100 delivers precise linear motion in a compact footprint and integrates quickly via its proven PWM interface. A brushed motor with a metal core works with a durable metal gear train to provide reliable power transmission and smooth starts. Programmability adds flexibility and supports clean tuning to the required motion profile. With a 50 mm (1.97 in) stroke and a 100:1 gear ratio, it achieves controlled feeds at 16.1 mm/s (0.63 in/s) while providing up to 60.56 N (13.61 lbf) of thrust. This linear actuator combines dynamics and repeatable accuracy with efficient integration, making it ideal for designs with limited space. Wherever clear signals and precise travel are required, it convinces with responsive behavior and consistent results.

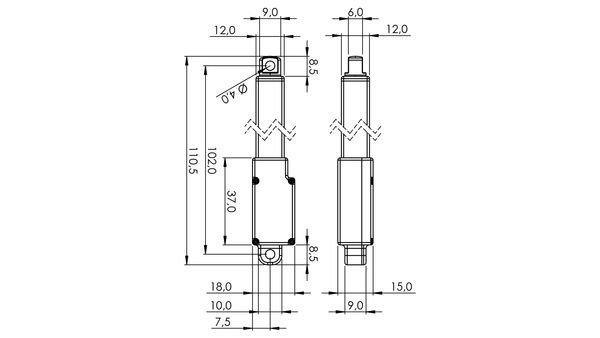

Length (mm): 102,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 40,00
Communication: PWM

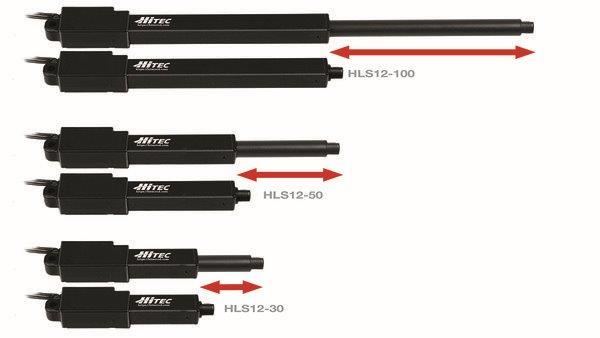

output length (mm): 50
Transmission Ratio: 100:1
Torque max. lifted at 6V (N): 41,19
Torque min. (N): 39,23
Torque max. (N): 60,80
Side load max. (N): 30,00
Speed min. (mm/s): 10,40
Speed max. (mm/s): 16,10
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
