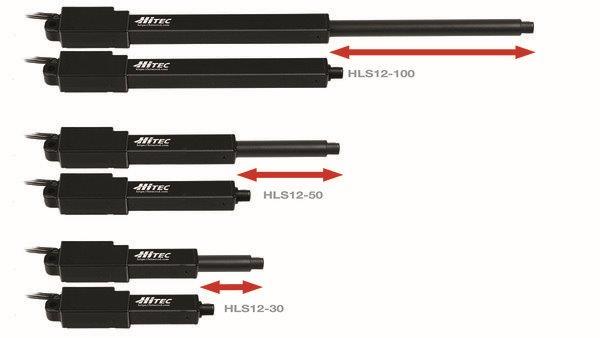

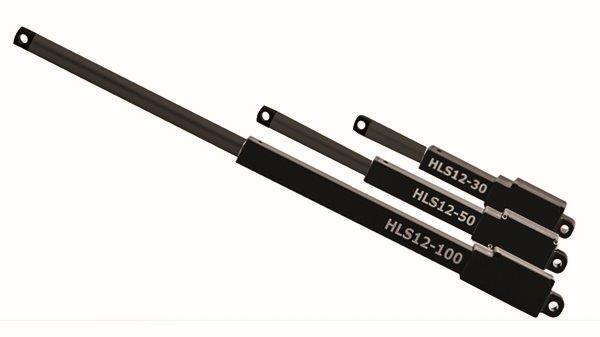

Hitec Linear Actuator HLS12-50210
1 629 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-02457
Contents:
1x HiTEC Linear actuator HLS12-50210
Mounting hardware
The HiTEC linear actuator HLS12-50210 delivers precise linear motion in a compact footprint. A brushed motor with a metal core works with a robust metal gear train to ensure reliable power transmission and smooth starts. Programmability adds flexibility and supports clean tuning to the required motion profile. With a 50 mm (1.97 in) stroke and a 210:1 gear ratio, it provides controlled feeds at 7.5 mm/s (0.30 in/s) while delivering up to 121.11 N (27.24 lbf) of thrust. The wide operating range of 4.08.4 V simplifies power supply design in both mobile and stationary systems. This linear actuator combines dynamics with repeatable accuracy and is well suited to space-constrained builds that demand clear signals and precise travel.

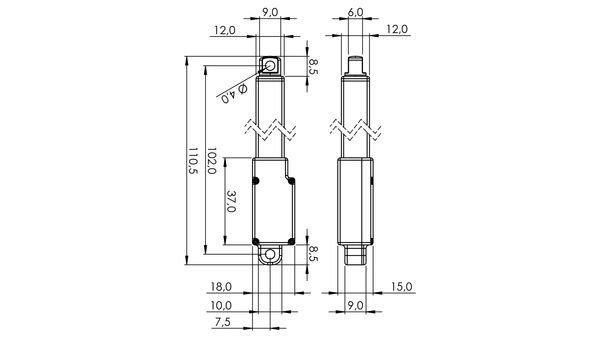

Length (mm): 102,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 40,00
Communication: PWM
output length (mm): 50
Transmission Ratio: 210:1
Torque max. lifted at 6V (N): 78,45
Torque min. (N): 78,45
Torque max. (N): 121,60
Side load max. (N): 30,00
Speed min. (mm/s): 4,90
Speed max. (mm/s): 7,50
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
