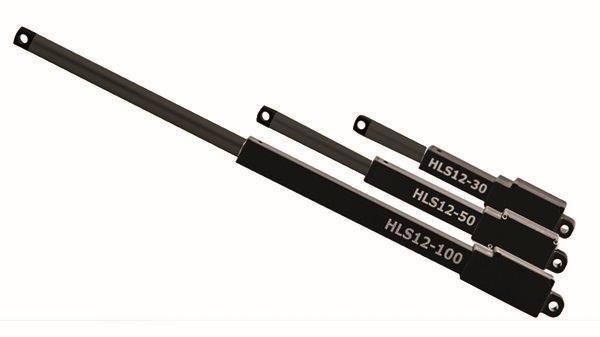

Hitec Linear Actuator HLS12-50380
1 629 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-02458
Contents:
1x HiTEC Linear actuator HLS12-50380
Mounting hardware

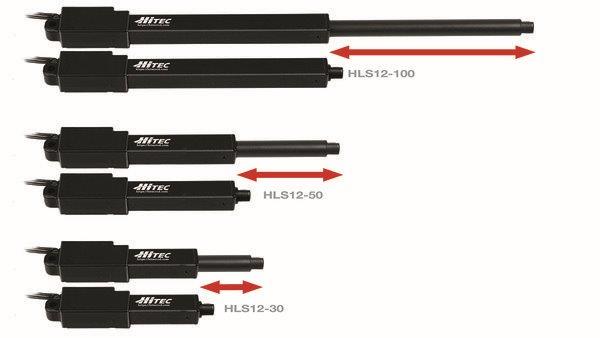

The HiTEC linear actuator HLS12-50380 combines a compact footprint with controlled force and precise travel. A brushed motor with a metal core works with a durable metal gear train to deliver reliable power transmission and smooth starts. Programmability adds application flexibility and makes it easy to tune the motion profile. With a 50 mm (1.97 in) stroke and a 380:1 gear ratio, it provides finely metered feeds at 4.1 mm/s (0.16 in/s), while delivering up to 218 N (49.00 lbf) of thrust for confident positioning under load. The wide operating range of 4.08.4 V simplifies power planning for both mobile and stationary systems. HLS12-50380 brings repeatable accuracy, strong reserves, and space-saving design together, ideal for tight installations and precise linear actuation tasks.

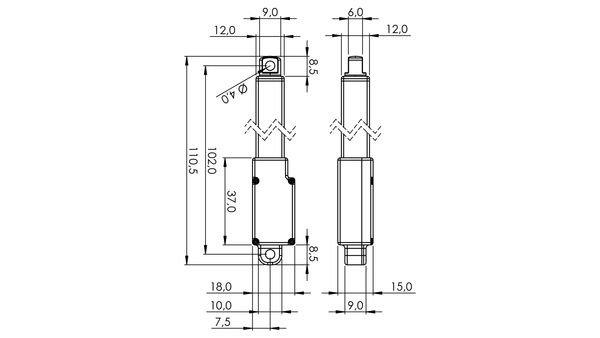

Length (mm): 102,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 40,00
Communication: PWM
output length (mm): 50
Transmission Ratio: 380:1
Torque max. lifted at 6V (N): 117,68
Torque min. (N): 141,22
Torque max. (N): 217,71
Side load max. (N): 30,00
Speed min. (mm/s): 2,60
Speed max. (mm/s): 4,10
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
