Hitec Linear Actuator HLS12-5050
1 629 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1-02456
Contents:
1x HiTEC Linear actuator HLS12-5050
Mounting hardware
The HiTEC linear actuator HLS12-5050 combines a compact footprint with high speed and precise motion. A brushed motor with a metal core works with a durable metal gear train to transmit force cleanly across the stroke. The PWM interface enables direct, proven control, while programmability adds flexibility for varied applications. With a 50 mm (1.97 in) stroke and a 50:1 gear ratio, it delivers dynamic feeds at 30.9 mm/s (1.22 in/s) and provides up to 30.28 N (6.81 lbf) of thrust. The 4.08.4 V operating range simplifies power planning. This linear actuator delivers fast cycle times, repeatable positioning, and smooth starts in a space-saving form factor, ideal for designs that demand clear signaling, precise travel, and reliable force transmission.

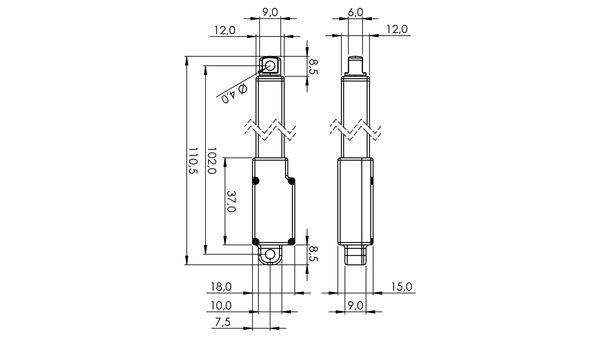

Length (mm): 102,00
Width (mm): 15,00
Height (mm): 18,00
Weight (g): 40,00
Communication: PWM
output length (mm): 50
Transmission Ratio: 50:1
Torque max. lifted at 6V (N): 21,57
Torque min. (N): 19,61
Torque max. (N): 30,40
Side load max. (N): 30,00
Speed min. (mm/s): 20,00
Speed max. (mm/s): 30,90
Voltage min. (V): 4,00
Voltage max. (V): 8,40
Motor type: Cored Metal Brush
Gearing: Metal
Housing: Engineering Plastic
Connector: Hitec 3 Pin (Uni)
Servo Type: Digital
