MKS DS9910 (0.159s/60°, 26.0kg.cm)
1 185 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS29001
High torque 58g digital standard servo w. metal gears; input voltage 4.8-6.0V, 2xBB. Fo general use, larger model aeroplanes. Torque 21kg.cm, speed 0.198s/60° at 4.8V, torque 26kg.cm, speed 0.159s/60° at 6.0V. Aluminium mid case for perfect heat dissipation. Dimensions 40x20x37mm, weight 58g. Non-programmable.
High torque digital standard servo with metal gears and twin ballraced output shaft for general use, larger model aeroplanes as well as RC cars and boats. A waterproof/dustproof aluminium mid case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 21
Thrust at 6.0V [kg∙cm] 26
Speed at 4.8V [s/60st.] 0.198
Speed at 6.0V [s/60st.] 0.159
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0007
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 7

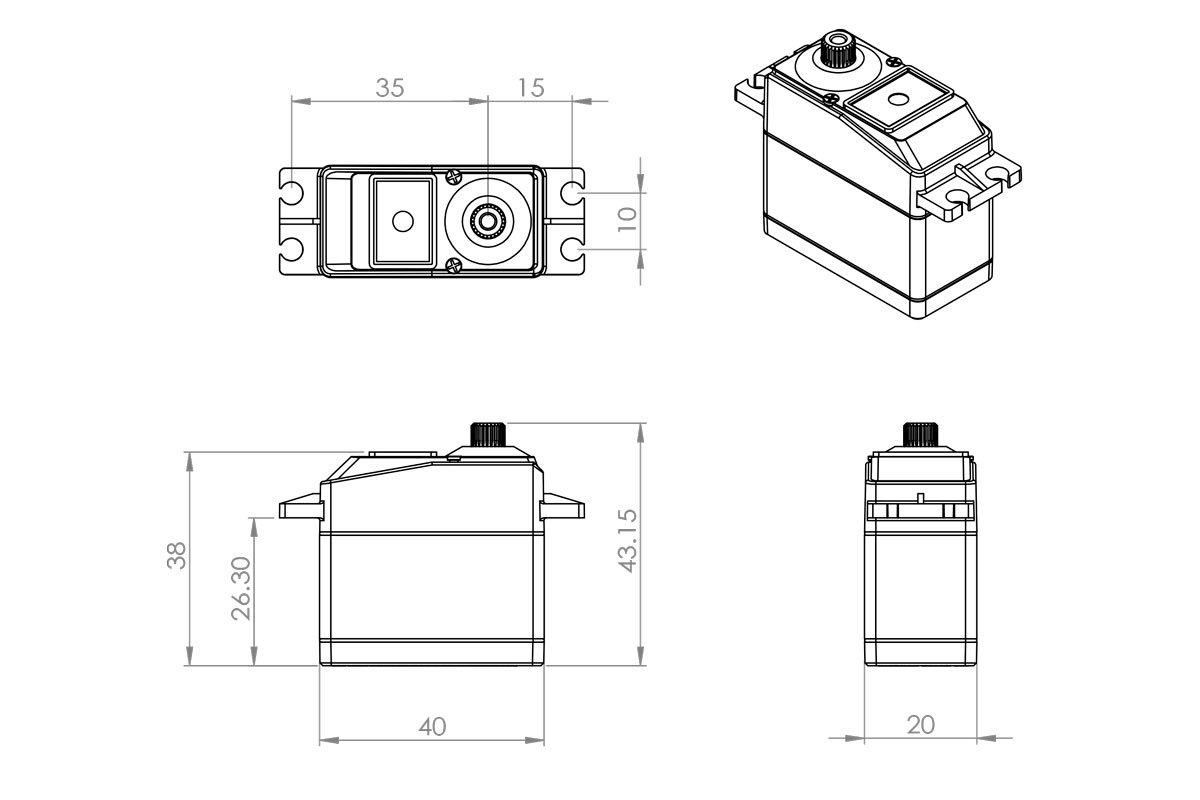

Length [mm] 40
Width [mm] 20
Height [mm] 37
Weight [g] 58
Intended for Aeroplanes
High torque digital standard servo with metal gears and twin ballraced output shaft for general use, larger model aeroplanes as well as RC cars and boats. A waterproof/dustproof aluminium mid case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 21
Thrust at 6.0V [kg∙cm] 26
Speed at 4.8V [s/60st.] 0.198
Speed at 6.0V [s/60st.] 0.159
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0007
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 7
Length [mm] 40
Width [mm] 20
Height [mm] 37
Weight [g] 58
Intended for Aeroplanes
