SAVÖX SB-2272MG digital servo BRUSCHLESS 69g (10.0kg/.05sec)*

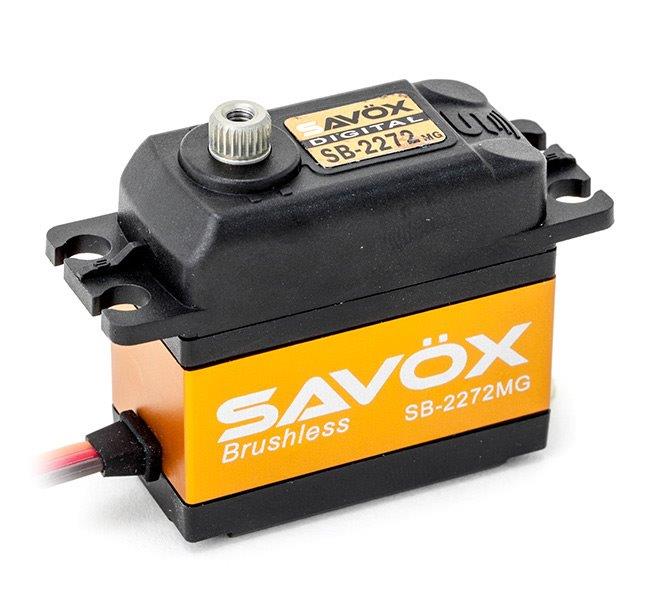

SAVÖX SB-2272MG - High Voltage Brushless Metal-Geared High Speed/Torque Servo
The Savox SB-2272MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:

• High Voltage

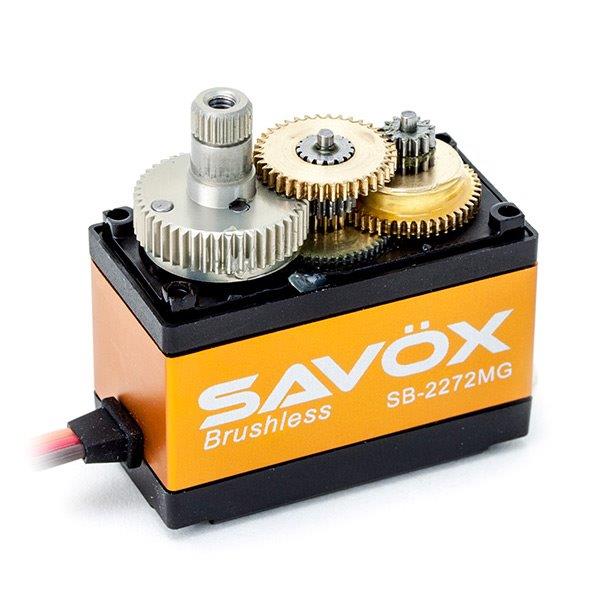

• Metal Gear train for extended life and durability
• Brushless motor for smooth operation and efficiency
• Ideal for helicopter use due to it's amazing speed

Specifications:

• Torque @ 6V: 5kg/cm
• Torque @ 7.4V: 7kg/cm
• Speed @ 6V: 0.045 sec/60 deg
• Speed @ 7.4V: 0.032 sec/60 deg

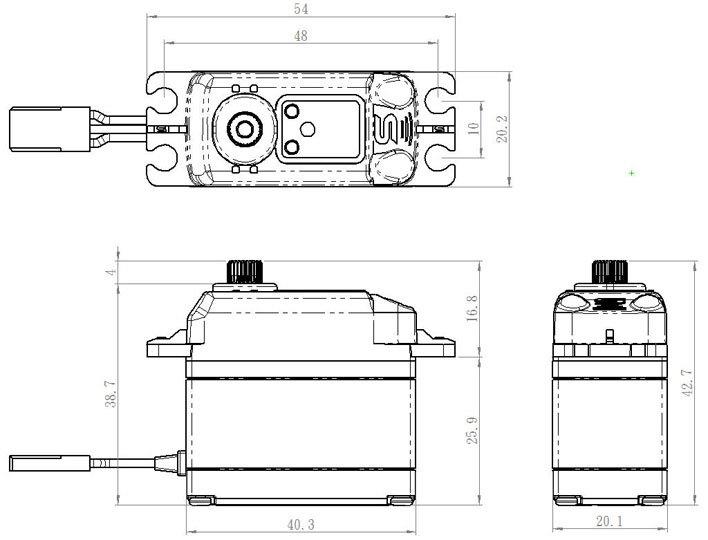

• Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
• Weight: 66g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless

Längd: 40,3 mm
Bredd: 20,2 mm
Höjd: 38,7 mm
Vikt: 66 g
Max Drivspänning: 7,4 V
Hastighet vid 6,0V: 0,045 sek/60°
Hastighet vid 7,2/7,4V: 0,032 sek/60°
Styrka vid 6,0V: 5,0 kg/cm
Styrka vid 7,2/7,4V: 7,0 kg/cm
Egenskaper: Aluminiumhus , Borstlös motor , Digitalt , Dubbla Kullager , HV , Metalldrev , Vattenskyddat
