SAVOX -SB-2290SG digital servo BRUSHLESS mot. 65kg 0.11
1 629 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 126050

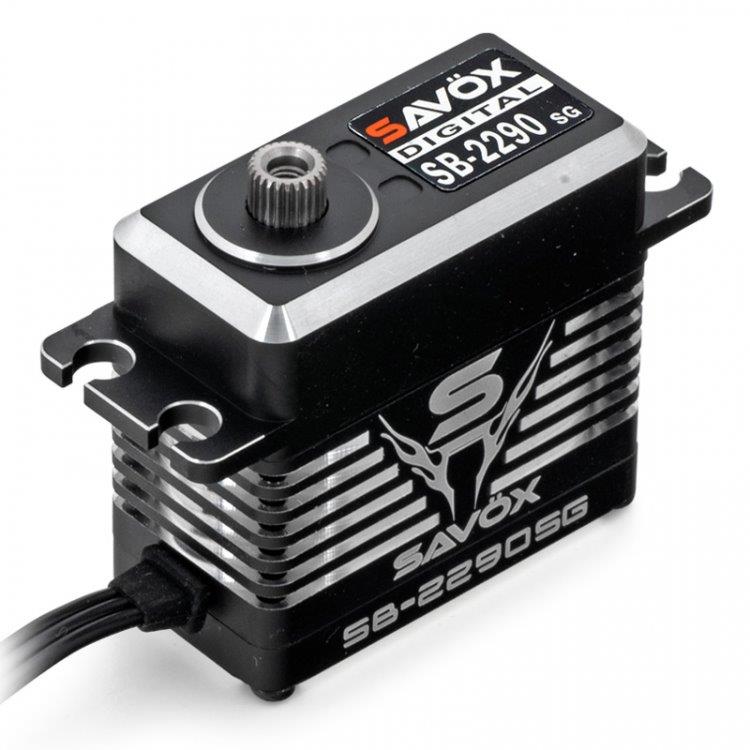

SAVÖX SB-2290SG - High Voltage Brushless Steel-Geared Monster Torque Servo
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Monster Features:
High Voltage
Full Aluminum Case
3 Precision Ball Bearings

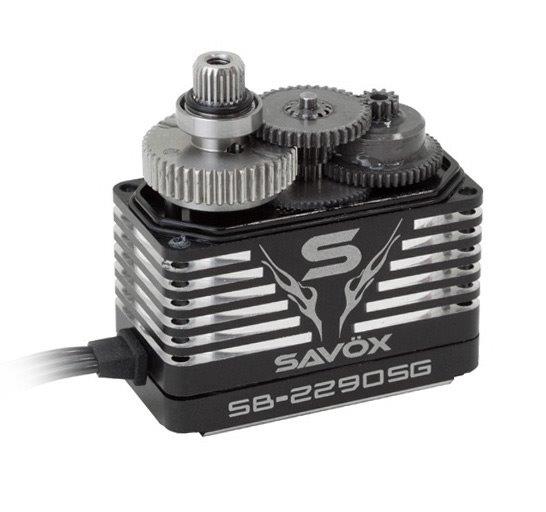

Unique steel gears
Specifications:
Torque @ 6V: 40kg/cm
Torque @ 7.4V: 50kg/cm
Torque @ 8.4V: 65kg/cm
Speed @ 6V: 0.16 sec/60 deg
Speed @ 7.4V: 0.13 sec/60 deg
Speed @ 8.4V: 0.11 sec/60 deg

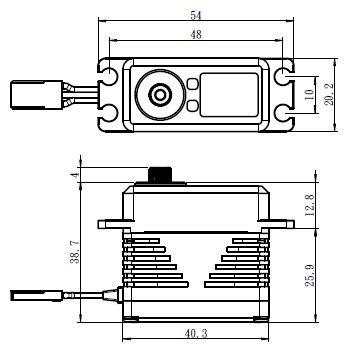

Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
Weight: 81g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 3BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
Included:
Mounting hardware
Plastic servo arms: 4pcs
Aluminium servo arm: 1pcs double arm
Decals
Längd: 40,3 mm
Bredd: 20,2 mm
Höjd: 38,7 mm
Vikt: 81 g
Max Drivspänning: 8,4 V
Hastighet vid 7,2/7,4V: 0,13 sek/60°
Styrka vid 7,2/7,4V: 50,0 kg/cm
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Monster Features:
High Voltage
Full Aluminum Case
3 Precision Ball Bearings
Unique steel gears
Specifications:
Torque @ 6V: 40kg/cm
Torque @ 7.4V: 50kg/cm
Torque @ 8.4V: 65kg/cm
Speed @ 6V: 0.16 sec/60 deg
Speed @ 7.4V: 0.13 sec/60 deg
Speed @ 8.4V: 0.11 sec/60 deg
Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
Weight: 81g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 3BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
Included:
Mounting hardware
Plastic servo arms: 4pcs
Aluminium servo arm: 1pcs double arm
Decals
Längd: 40,3 mm
Bredd: 20,2 mm
Höjd: 38,7 mm
Vikt: 81 g
Max Drivspänning: 8,4 V
Hastighet vid 7,2/7,4V: 0,13 sek/60°
Styrka vid 7,2/7,4V: 50,0 kg/cm
