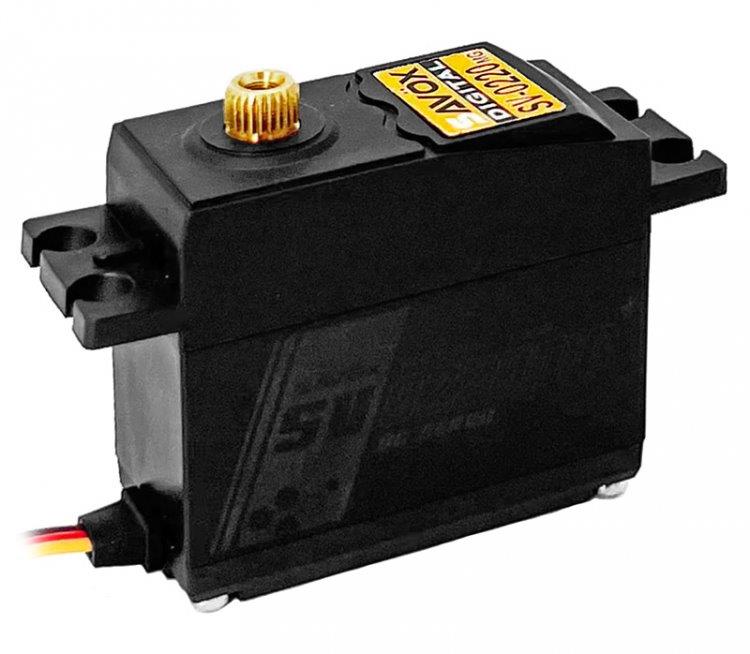

SAVÖX SV-0220MG Plus Servo Digital 8Kg 0,13s HV Metalldrev
365 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAVSV0220MGPLUS
Savox SV0220MGPLUS - High Voltage Standard Digital Servo 0.13s 8kg/cm @ 7.4V
The Savox SV-0220MG PLUS is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.
Features:
Soft Start
Sanwa SSR compatible
High Voltage
Metal gear train ensures durability and longevity
Specifications:
Torque @ 6V: 6.5kg/cm
Torque @ 7.4V: 8kg/cm
Speed @ 6V: 0.16s/60deg
Speed @ 7.4V: 0.13s/60deg

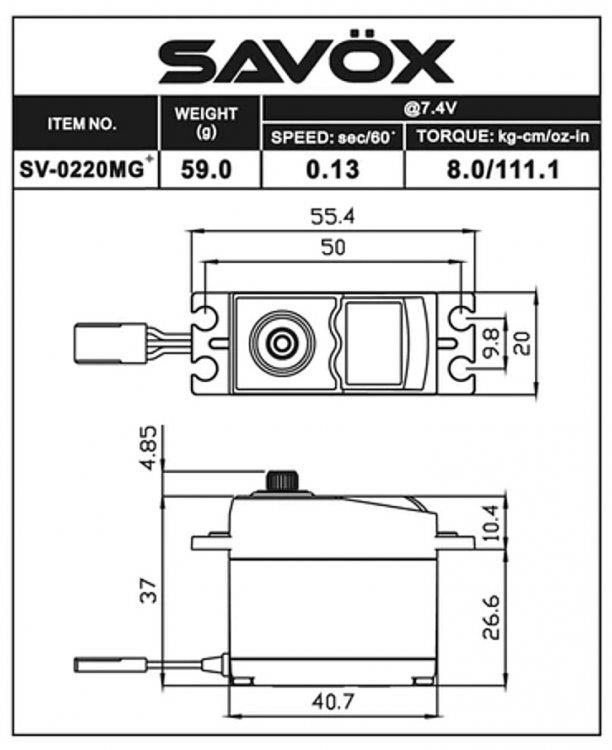

Dimensions: L40.7 x W20 x H37mm
Weight: 59g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @6.0V, 120mA @7.4V
Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 1BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
