Savox SV-0235MG Hi Volt digital servo 35kg/0.13s/7.4V*

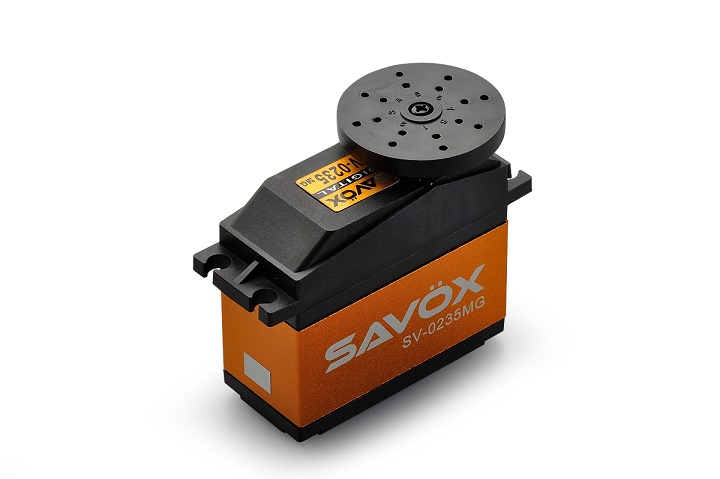

SAVÖX SV-0235MG - Metal-Geared Giant-Scale High Voltage Servo
The SW0235MG is a metal-geared, and digital servo. It is a fast large scale servo and capable of operating on high voltage.

Features:

• High Voltage
• Ideal for 1/5 scale off road and large scale aircraft applications
• Strong metal gear train for added durability
• Good torque and speed for a nice balance

Specifications:

• Torque @6V: 28kg/cm
• Torque @7.4V: 35kg/cm
• Speed @6V: 0.18 sec/60 deg
• Speed @7.4V: 0.15 sec/60 deg

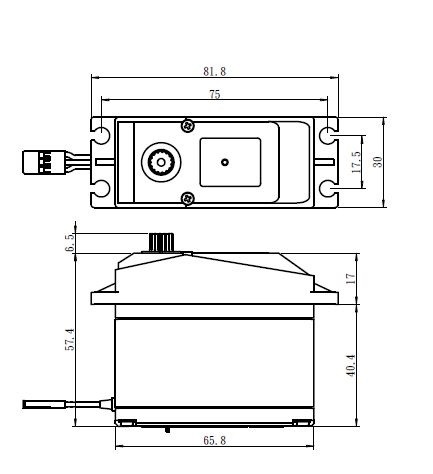

• Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
• Weight: 200g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 150mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 15 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed

Längd: 65,8 mm
Bredd: 30,0 mm
Höjd: 57,4 mm
Vikt: 200 g
Max Drivspänning: 7,4 V
Hastighet vid 6,0V: 0,18 sek/60°
Hastighet vid 7,2/7,4V: 0,15 sek/60°
Styrka vid 6,0V: 28,0 kg/cm
Styrka vid 7,2/7,4V: 35,0 kg/cm
Egenskaper: Aluminiumhus , Digitalt , Dubbla Kullager , Metalldrev
