Savox SV-0236MG Hi Volt digital servo 40kg/0.17s/7.4V*

SAVÖX SV-0236MG - High Voltage 1/5 Scale Servo
The SV-0236MG is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.

Features:

• Ideal for 1/5 scale off road and large scale aircraft applications

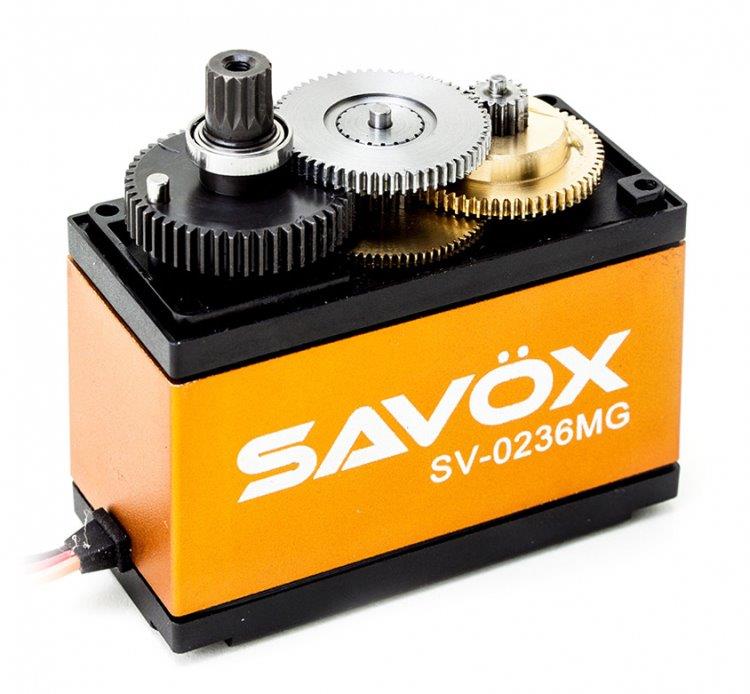

• Strong metal gear train for added durability
• Extremely high torque output
• Capable of operating on high voltage

Specifications:

• Torque @6v: 30.0kg
• Torque @7.4v: 40.0kg
• Speed @6v: 0.21 sec/60 deg
• Speed @7.4v: 0.17 sec/60 deg

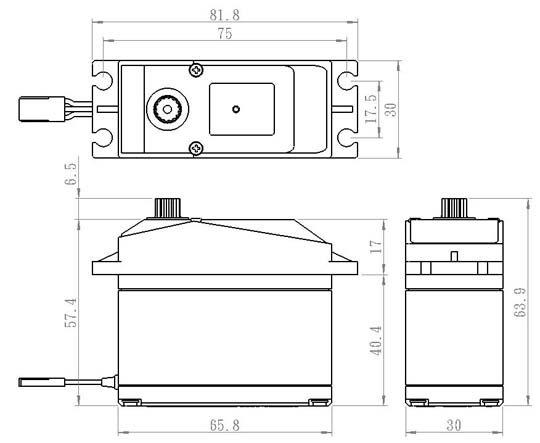

• Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
• Weight: 200g

Tech Details:

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 150mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 15 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
