Product Details
Key Features
Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microchip Stores Unique Parameters for Each Battery
New IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Feature Overview

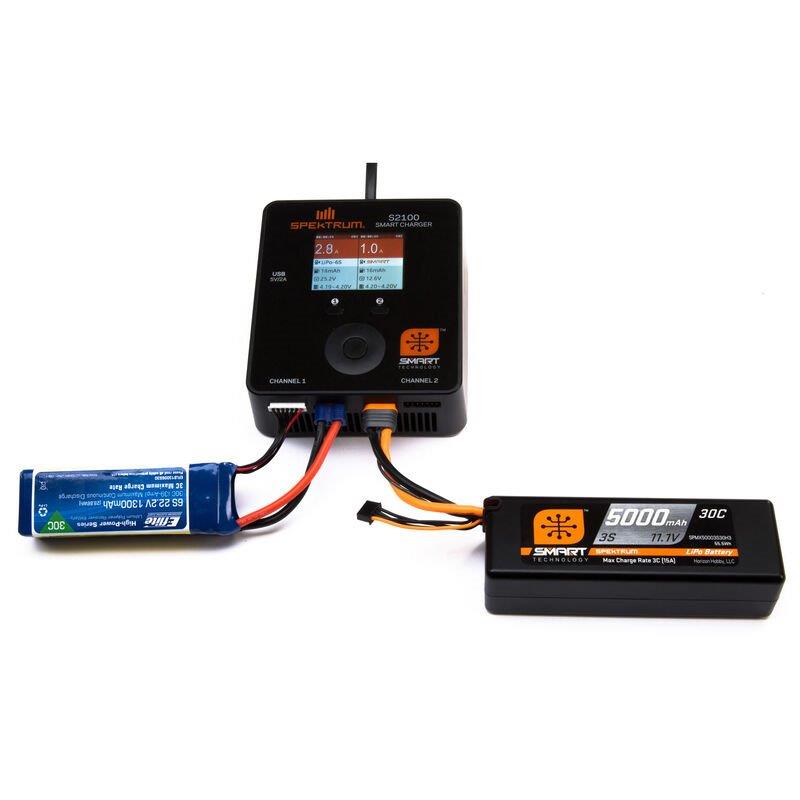

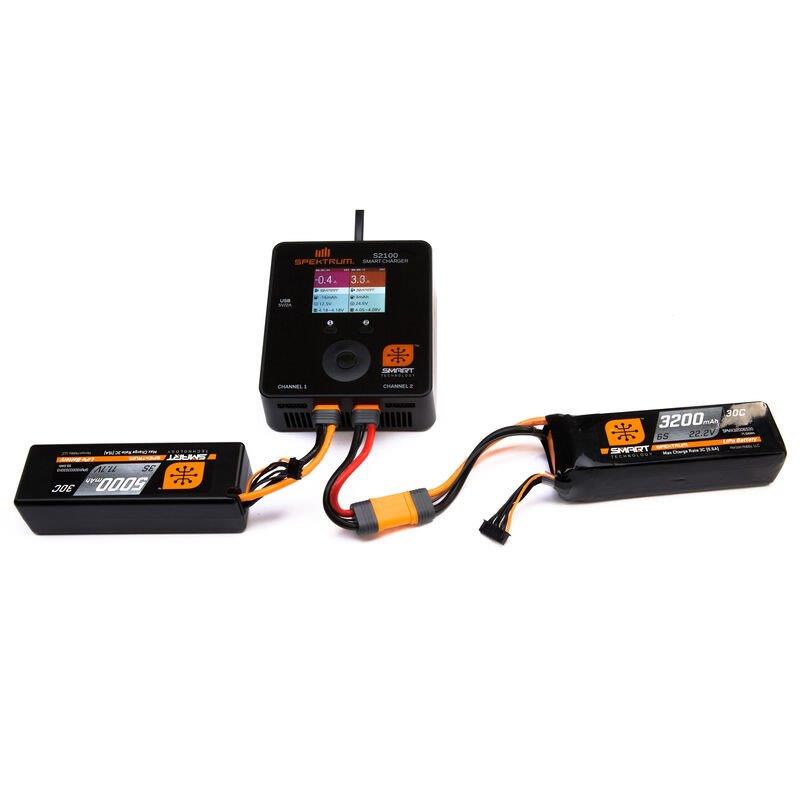

Youll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger Start button. Smart technology takes care of the rest.

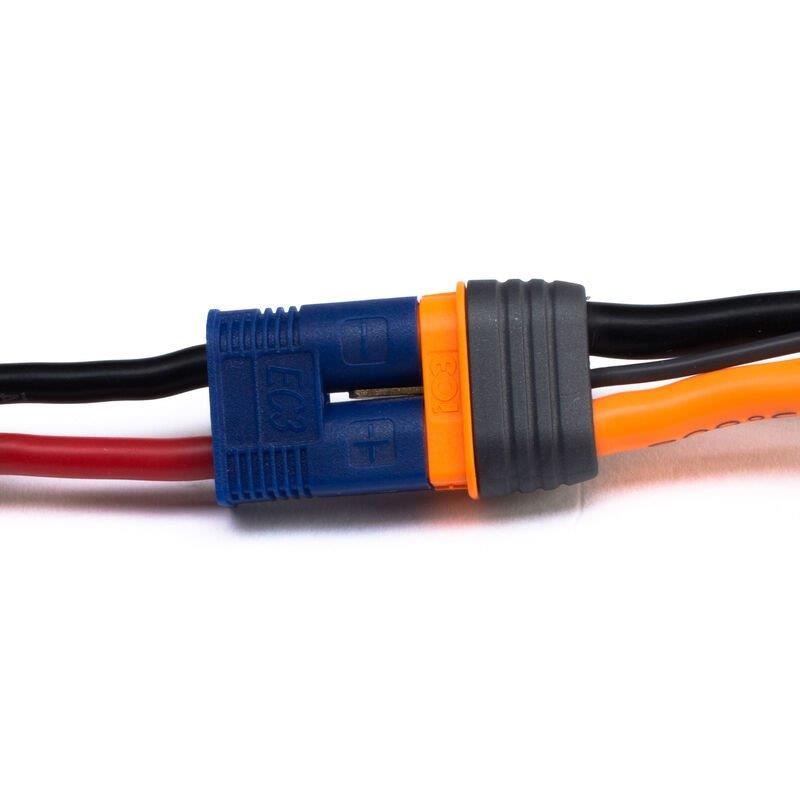

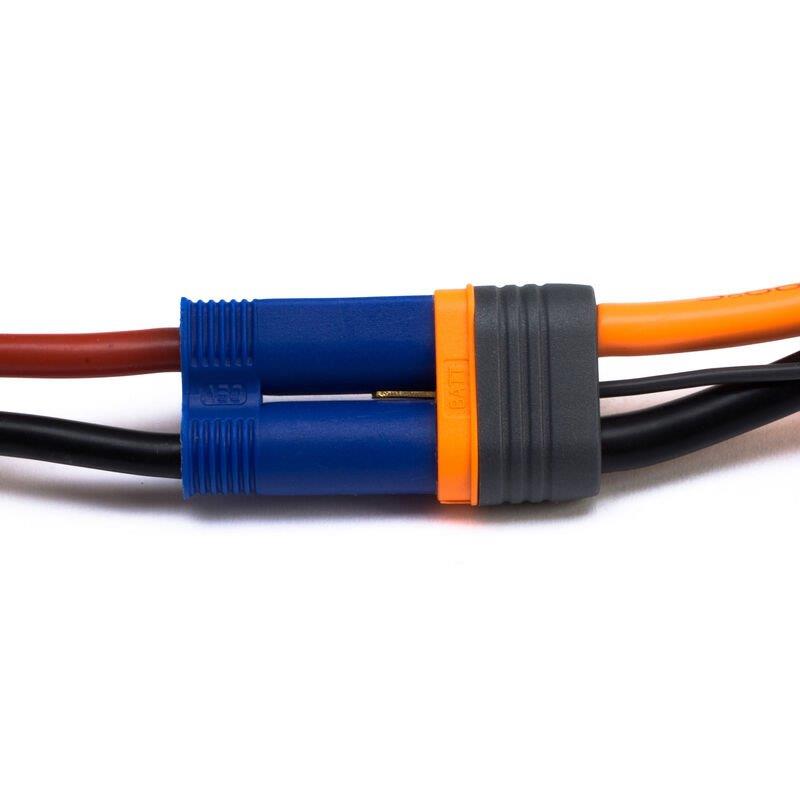

Every Smart LiPo battery is factory assembled with the next-generation IC3 or IC5 output connector thats conveniently compatible with older devices equipped with robust EC3 and EC5 connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery youve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the Start button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.

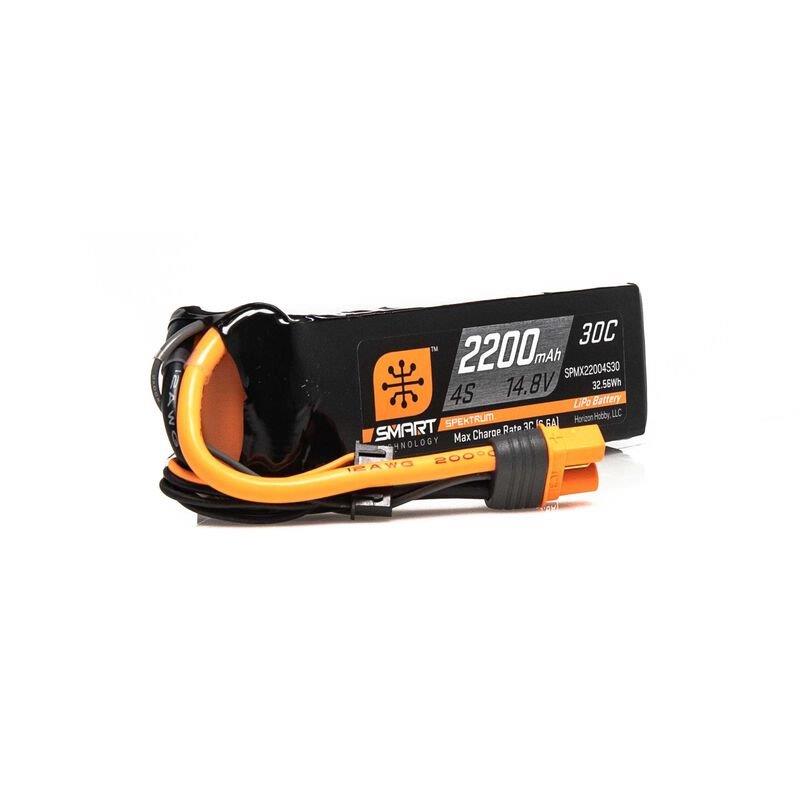

Product Specifications:
Auto Storage Yes
Battery Type LiPo (3.7V per cell)
Capacity 2200 mAh
Material Soft Case
Prop 65 California Residents Prop 65 WARNINGS.
Number of Cells 4
Smart Technology G1 Technology
Battery Voltage 14.8V
Connector Type IC3
Discharge 30C
Maximum Charge Rate 3C
Product Length 4.3 in(110mm)
Hard Case No
Maximum Continuous Discharge Rate 30C
Product Application Air
Product Height 1.2 in (30mm)
Application Air
Product Weight 200g to 299g
Roar Approved No
Product Width 1.3 in (34mm)
Technology Smart
