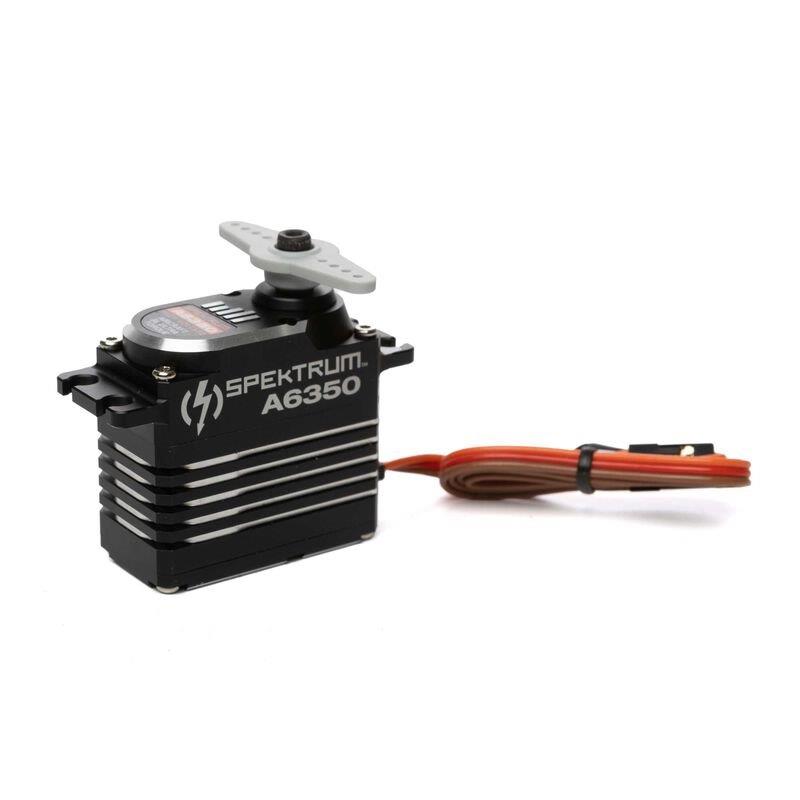

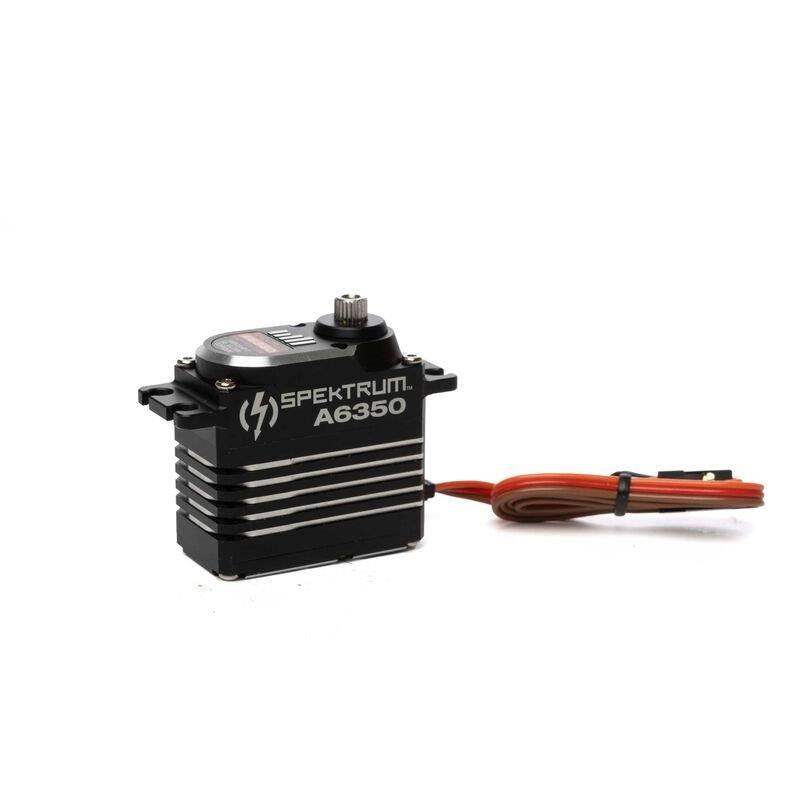

Spektrum A6350 Ultra Torque / High Speed Brushless HV Servo
3 119 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSA6350
Product Details
Key Features
High Voltage (HV) capable
Superior torque and speed in a standard servo size
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation

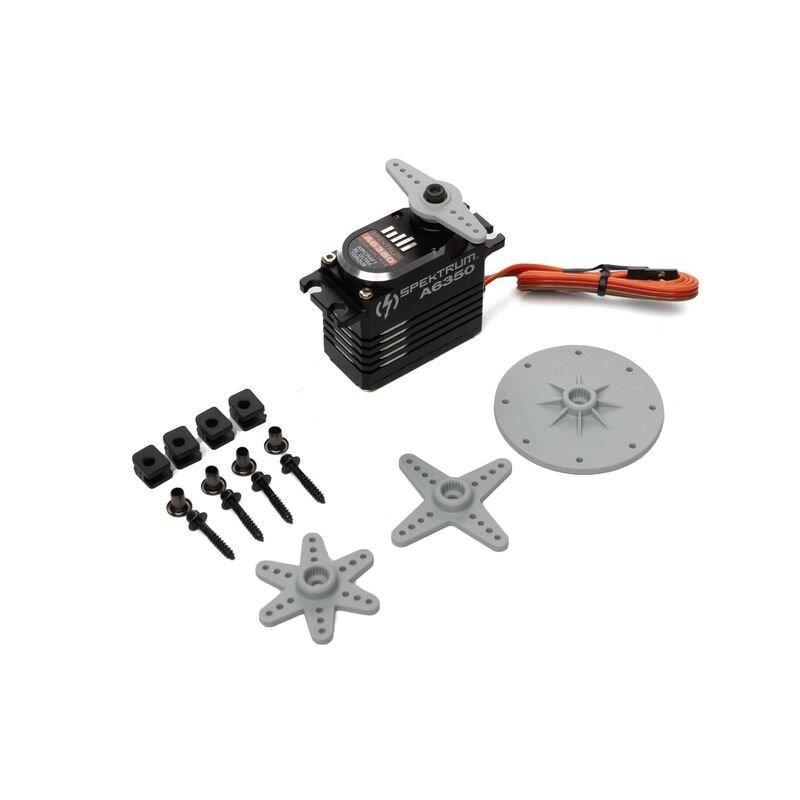

In The Box
(1) A6350 Brushless Servo
(4) Mounting Grommets, Eyelets, and Hardware
(4) Plastic Servo Arms and (1) Screw
(1 Set) Guided by Spektrum Decals
Features
High Voltage (HV) capable (6.0-8.4v input range)
Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Operating Frequency: 200hz to 333hz
A6350 Ultra Torque High Speed Brushless MG HV Servo
The Spektrum A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.
Product Specifications:
Application: Airplane
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Gear Type: Metal
Input Voltage: 6.0V to 8.4V
Material: Metal
Maximum Servo Speed: 0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V
Maximum Servo Torque: 576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
Motor Type: Brushless
Overload Protection: Yes
Product Application: Air

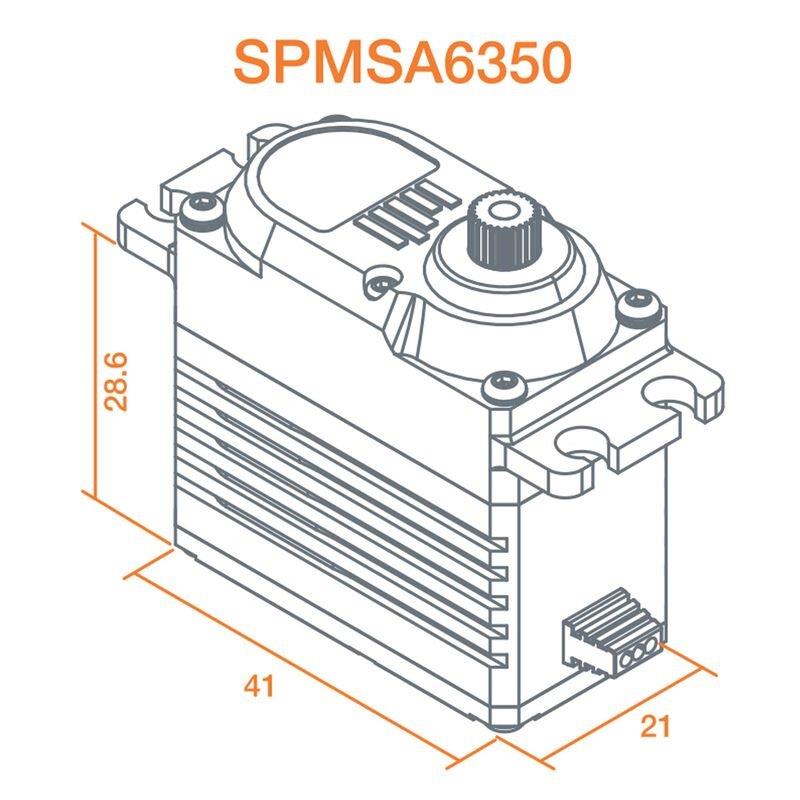

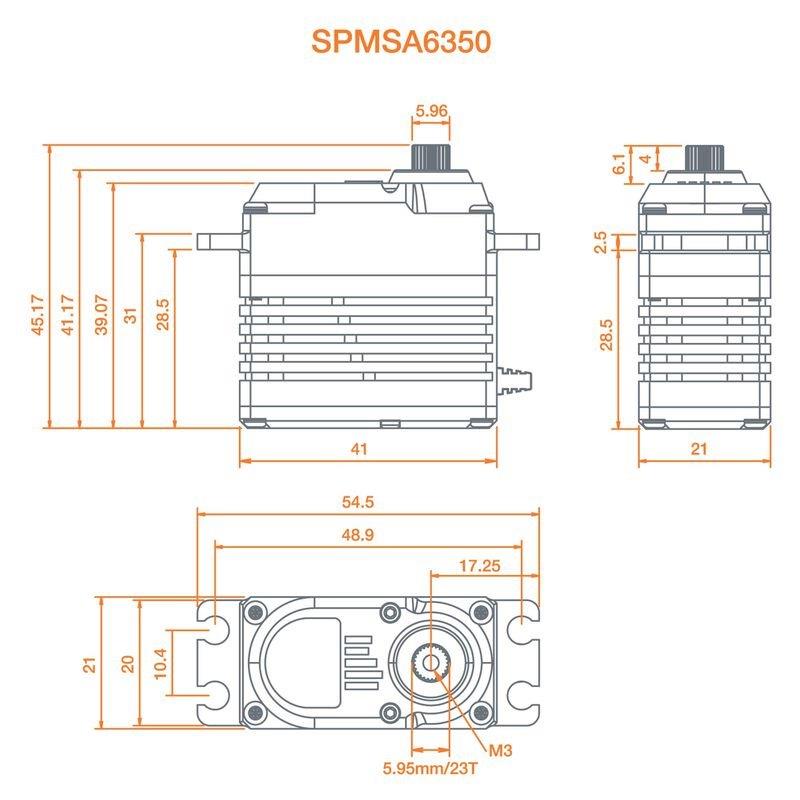

Product Height: 1.61" (41 mm)
Product Length: 1.61" (41 mm)
Product Weight: 3 oz (85g)
Product Width: 0.83" (21 mm)
Servo Operating Voltage: 4.8 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Key Features
High Voltage (HV) capable
Superior torque and speed in a standard servo size
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
In The Box
(1) A6350 Brushless Servo
(4) Mounting Grommets, Eyelets, and Hardware
(4) Plastic Servo Arms and (1) Screw
(1 Set) Guided by Spektrum Decals
Features
High Voltage (HV) capable (6.0-8.4v input range)
Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Operating Frequency: 200hz to 333hz
A6350 Ultra Torque High Speed Brushless MG HV Servo
The Spektrum A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.
Product Specifications:
Application: Airplane
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Gear Type: Metal
Input Voltage: 6.0V to 8.4V
Material: Metal
Maximum Servo Speed: 0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V
Maximum Servo Torque: 576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
Motor Type: Brushless
Overload Protection: Yes
Product Application: Air
Product Height: 1.61" (41 mm)
Product Length: 1.61" (41 mm)
Product Weight: 3 oz (85g)
Product Width: 0.83" (21 mm)
Servo Operating Voltage: 4.8 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
