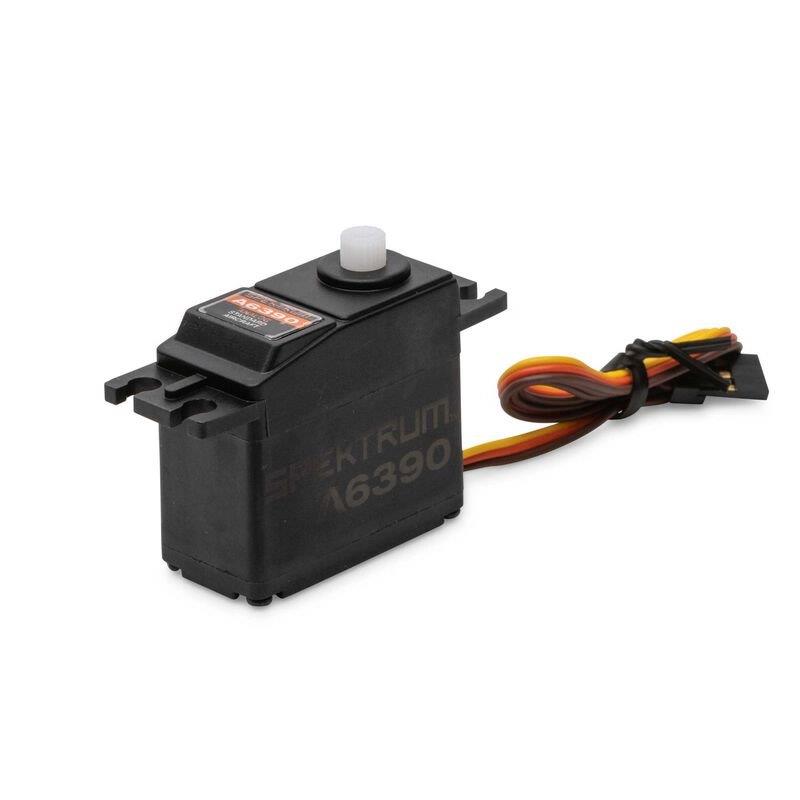

Spektrum A6390 Standard Analog Mid Torque Mid Speed Aircraft Servo
222,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSA6390
Product Details
Overview

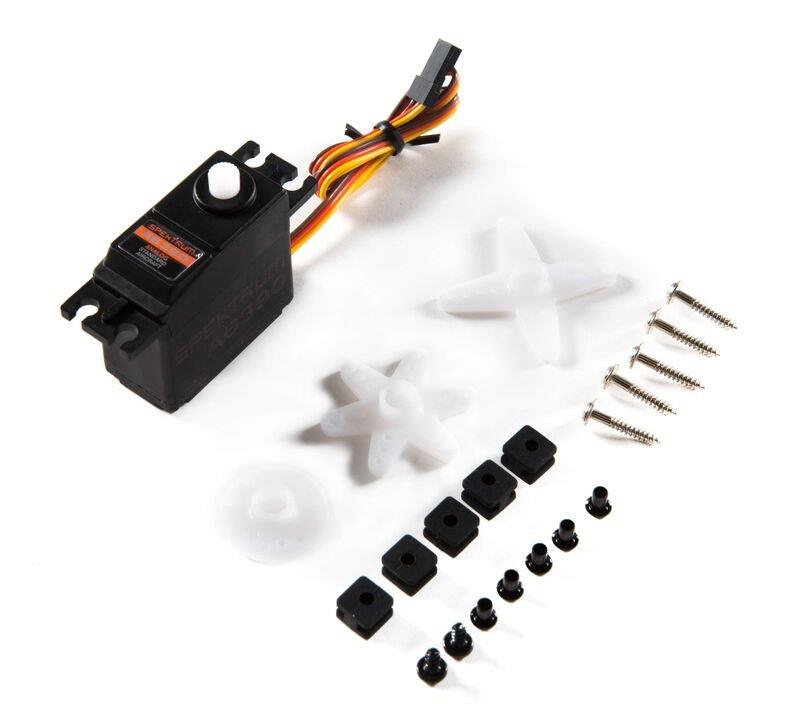

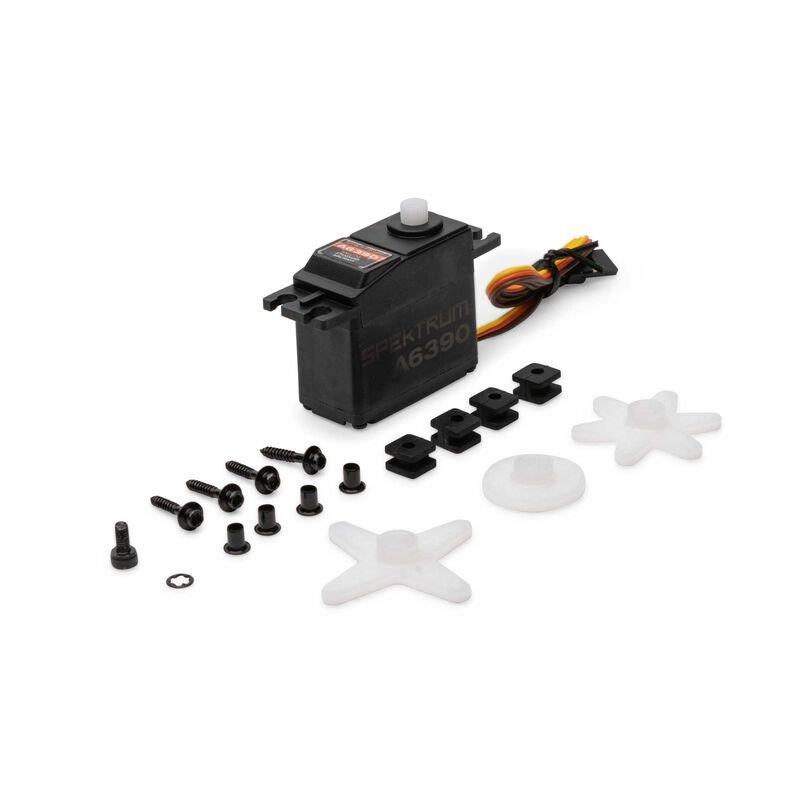

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
Product Specifications:
Application: Air
Bearing: Single
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 12" (305 mm)
Deadband: 3µs
Gear Type: Nylon
Input Voltage: 4.8V to 6.0V
Material: Plastic
Maximum Servo Speed: 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V
Maximum Servo Torque: 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V
Product Application: Air
Product Height: 1.36" (35 mm)
Product Length: 1.52" (39 mm)
Product Weight: 1.3oz (37g)
Product Width: 0.74" (19 mm)
Programmable: No
Rotation Range: 120 deg
Servo Operating Voltage: 4.8 - 6.0V
Servo Size Category: Standard
Servo Type: Analog
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 22 AWG
Overview
The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
Product Specifications:
Application: Air
Bearing: Single
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 12" (305 mm)
Deadband: 3µs
Gear Type: Nylon
Input Voltage: 4.8V to 6.0V
Material: Plastic
Maximum Servo Speed: 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V
Maximum Servo Torque: 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V
Product Application: Air
Product Height: 1.36" (35 mm)
Product Length: 1.52" (39 mm)
Product Weight: 1.3oz (37g)
Product Width: 0.74" (19 mm)
Programmable: No
Rotation Range: 120 deg
Servo Operating Voltage: 4.8 - 6.0V
Servo Size Category: Standard
Servo Type: Analog
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 22 AWG
