Spektrum A7100 MT/MS Metal Gear HV Wing Servo
1 319 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSA7100
Product Details
Key Features
High Voltage (HV) capable (4.8-8.4v input range)
Specifically designed for thin wing aircraft models and sailplanes
Aluminum servo case helps keep operating temperatures low
Low wear and tightly meshed all metal gear train
Bearing supported drive train helps maximize smooth operation

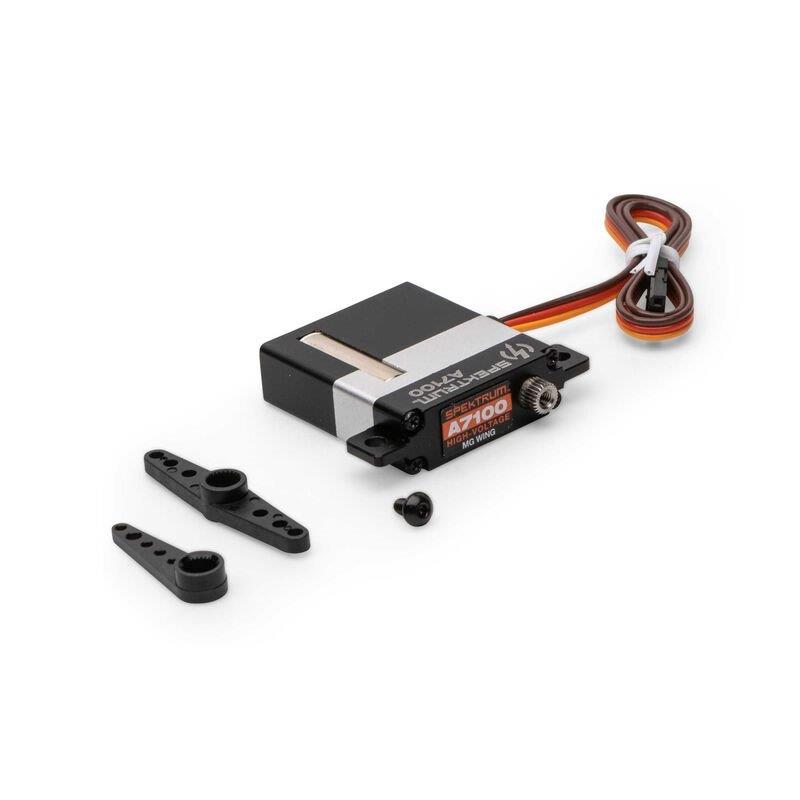

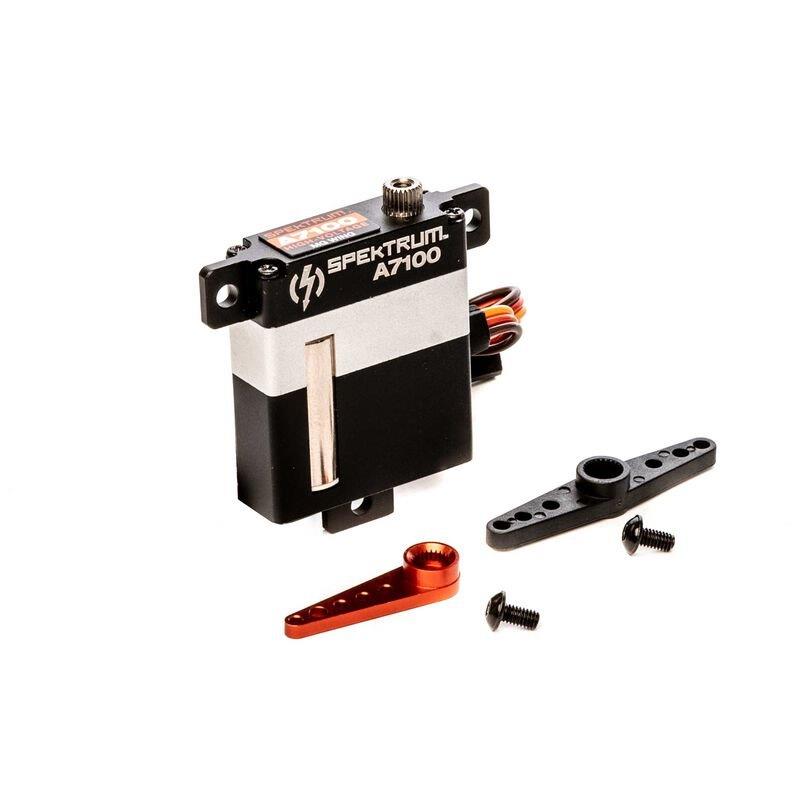

In The Box
(1) A7100 Wing Servo
(1) Double-sided Plastic Servo Arm
(1) One Inch Red Anodized Aluminum Servo Arm
Features
High Voltage (HV) capable (4.8-8.4v input range)
Specifically designed for thin wing aircraft models and sailplanes
Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
Aluminum servo case helps keep operating temperatures low
Low wear and tightly meshed all metal gear train
Bearing supported drive train helps maximize smooth operation
Over Current and Temperature protection
Operating Frequency: 200hz to 333hz
A7100 Mid Torque Mid Speed HV MG Thin Wing Servo
The Spektrum A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.
Product Specifications:
Application: Airplane
Bearing: Single Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Deadband: <1µs
Gear Type: Metal
Input Voltage: 4.8V-8.4V
Maximum Servo Speed: 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V
Maximum Servo Torque: 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
Overload Protection: No
Product Application: Sailplane

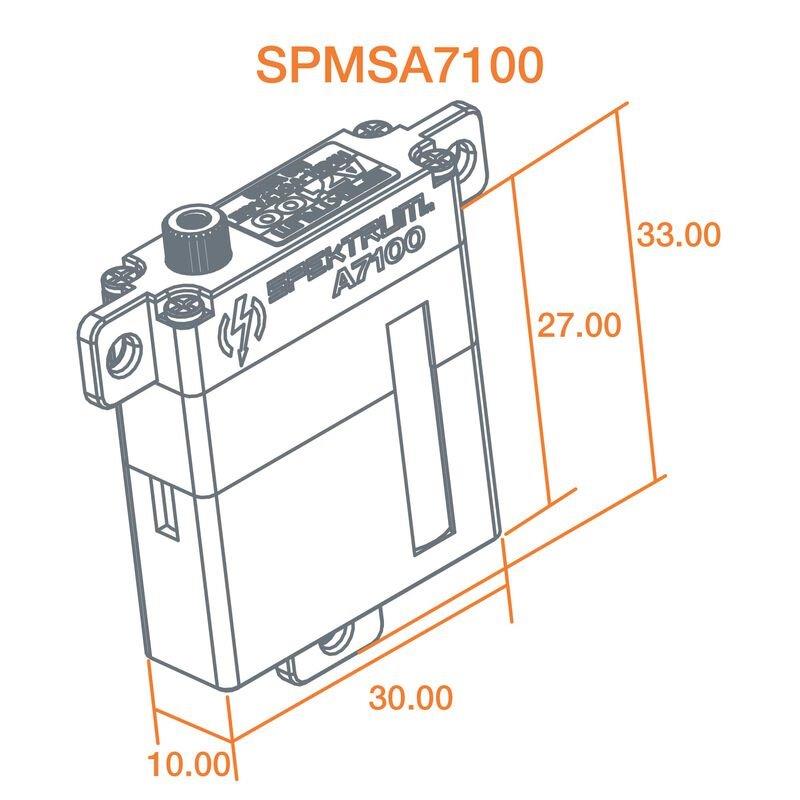

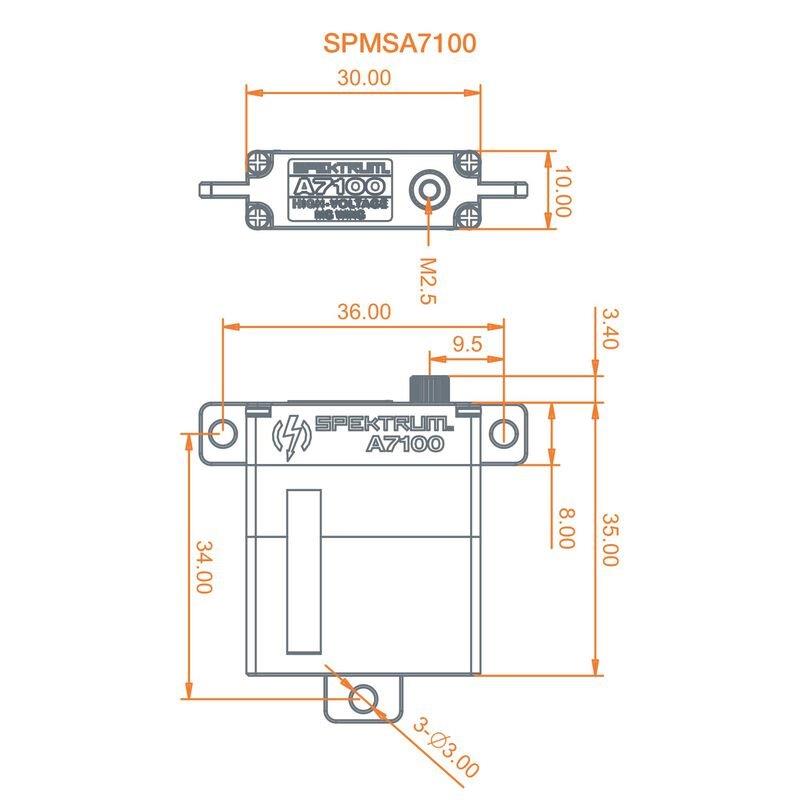

Product Height: 1.38" (35 mm)
Product Length: 1.18" (30 mm)
Product Weight: 1.0 oz (28g)
Product Width: 0.39" (10 mm)
Programmable: No
Prop 65: California Residents Prop 65 WARNINGS.
Servo Operating Voltage: 4.8 - 8.4V (HV)
Servo Size Category: Thin Wing
Servo Type: Digital
Spline Count: 25 - Tooth
Water-Resistant: No
