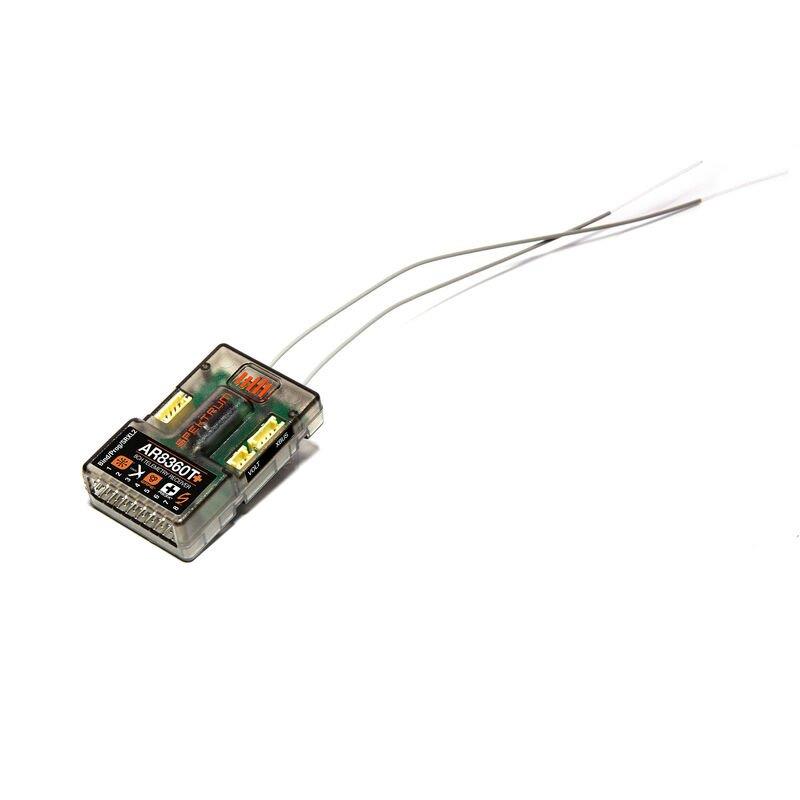

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
1 799 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPM1033
Product Details
The Spektrum AR8360T+ 8-Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T+ is a full-range 8-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, increased sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
Key Features
Compatible with all Spektrum DSM2 and DSMX transmitters
Built in AS3X+ Stabilization System with SAFE flight envelope protection
Smart Transmitter Model File Download Support
Compact footprint fits most parkflyer size, sport class, and giant scale models
Features full range telemetry, integrated barometer to provide altitude, and vario telemetry data without the need of additional sensors
In The Box
(1) AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
(1) Product Manual
Needed to Complete
(1) Spektrum Telemetry Capable Transmitter
Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Overview
The AR8360T+ features a full-range telemetry and integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe technology and Hold Last, as well as preset failsafe types set through forward programming.
Please Note:
The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.
These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters.
Using this receiver in turbine powered aircraft models is not recommended.
Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Features
Bind button allows for easy binding and eliminates the use of bind plug
Two external antennas will ensure secure RF coverage from all angles of the aircraft
Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
End pin output pins for easy and compact installation
AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter*
Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need of modules, links and wires
Forward Programming capable for setting individual failsafe parameters per channel and more
Product Specifications:
Antenna Length: 6.1" (155 mm)
Application: Airplane, Sailplane
Band: 2.4GHz
Bind Method: Bind Button
Channels: 8
Failsafe: Yes
Forward Programming: Yes
Input Voltage: 3.5 - 9V
Integrated Variometer: Yes
Modulation: DSMX
Product Application: Air, Sailplanes
Product Height: 0.59" (15 mm)
Product Length: 1.92" (49 mm)
Product Weight: 0.56oz (16g)
Product Width: 1.2" (30 mm)
Range: Full
Remote Receiver Ports: 1
Resolution: 2048
Serial Out: SRXL2
Technology: AS3X+, SAFE
Telemetry: Yes
Telemetry Range: Full
