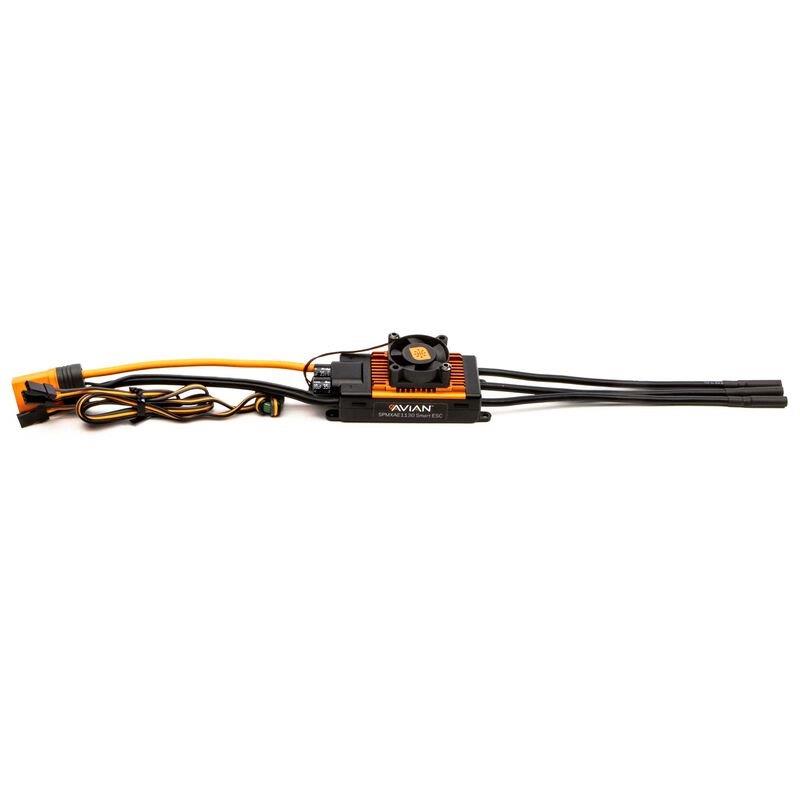

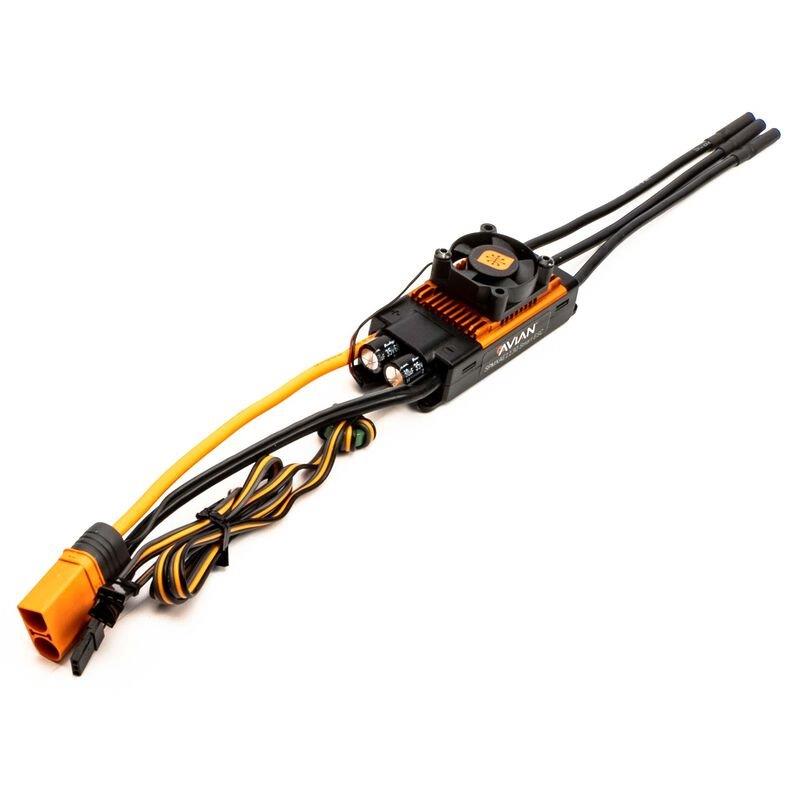

Spektrum Avian 130-Amp Brushless Smart ESC, 3S - 6S
1 442,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXAE1130
Product Details
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
o Throttle stick programming
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Heat dissipating design
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum Avian Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Product Specifications:
Adjustable Timing: Yes
Amperage: 130A
Application: Air
Auto Cutoff: Yes
Battery Input Lead: IC5
BEC: Yes
BEC Continous Current: 8
BEC Maximum Burst Current: 25A
BEC Type: Switch-Mode
BEC Voltage: 6V / 7.4V / 8.4V Adjustable
Connector Type: IC5
ESC Type: Brushless
Forward: Yes
Input Voltage: 3S - 6S LiPo
Low-Voltage Cutoff Programmable: Yes
Max Input Voltage: 22.2V
Maximum Burst Current: 160A
Maximum Continuous Current: 130A
Motor Output Lead: 4mm
Overload Protection: Yes
Product Application: Air
Product Height: 1.3" (33 mm)
Product Length: 3.3" (84 mm)
Product Weight: 126g (4.4 oz)
Product Width: 1.4" (36 mm)
Programmable: Yes
Programming Options: Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Reverse: Yes
Technology: Smart
