Spektrum Firma 1/10 Smart Sensored Outrunner Motor/ESC Co: 2000Kv
4 092 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSEMC22
Firma 1/10 Smart Sensored Outrunner Motor/ESC Combo: 2000Kv Smart Sensored outrunner upgrade system for 1/10th scale crawlers and scalers.
Product Details

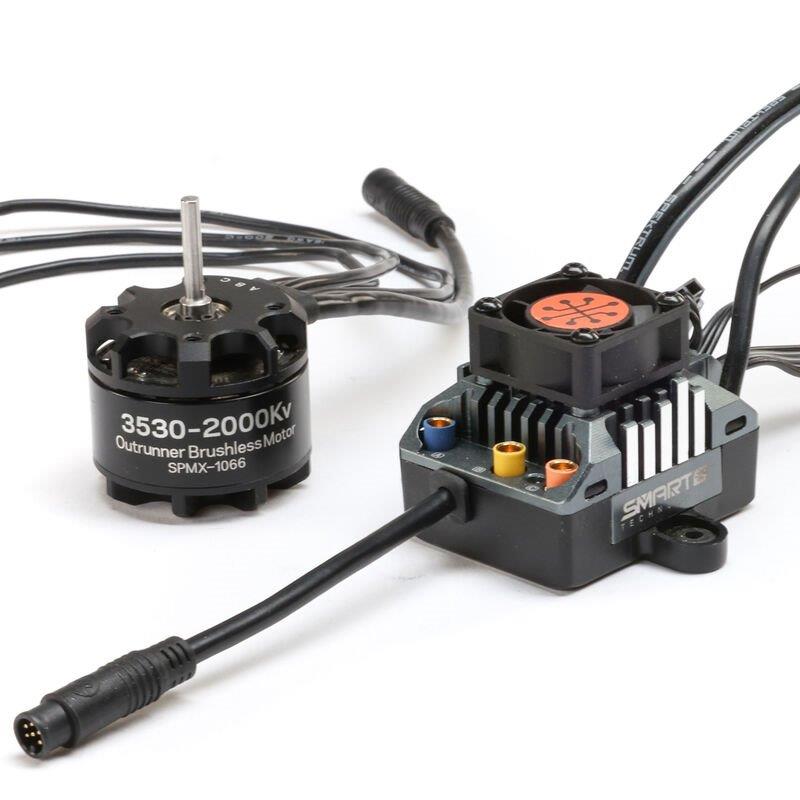

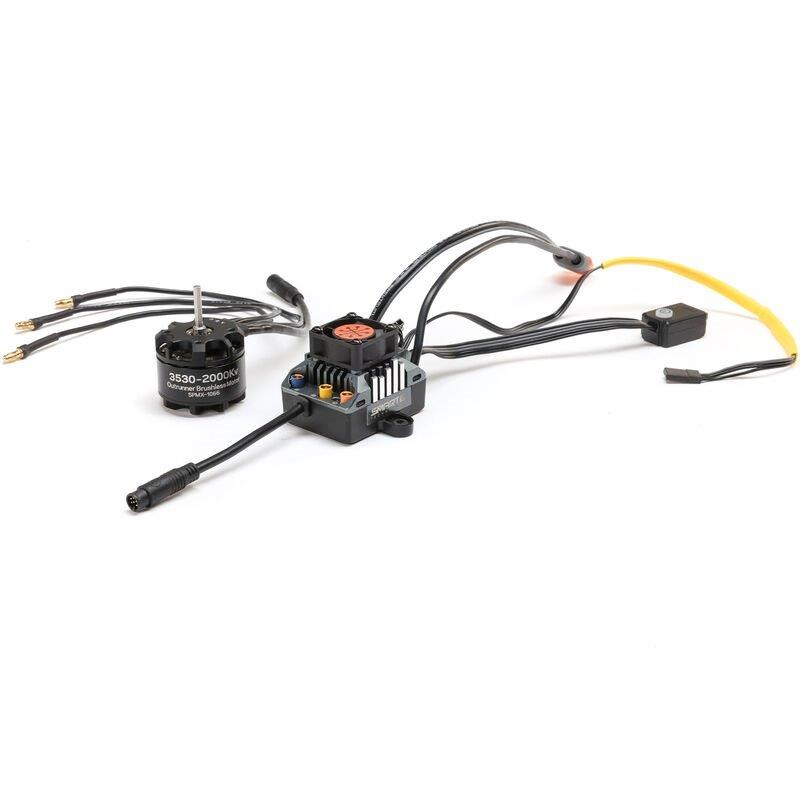

In The Box
Firma 60A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S): 1
Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm (SPMX-1066): 1
Firma 1/10 Smart Sensored Outrunner Motor/ESC Co: 2000Kv Overview
The Spektrum Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).
Firma 1/10 Smart Sensored Outrunner Motor/ESC Co: 2000Kv Features
Smart All-In-One Telemetry
Enable/Disable Drag Brake From Compatible Spektrum Transmitters
Fast, Powerful 32-Bit ARM M4 Processor
Multiple Programming Options
Multi-Point Protection
Waterproof (See Instructions For Details)
2-3S LiPo Power Compatible
12-pole Outrunner
3.175mm Output Shaft
Pre-installed 3.5mm Gold-plated Bullet Connectors
Firma 1/10 Smart Sensored Outrunner Motor/ESC Co: 2000Kv Product Specs
Auto Cutoff: Yes
BEC Voltage: 6V/7.4V at 6A
Brakes: Yes
Connector Type: IC3, 3.5mm Bullet
ESC Type: Sensored Brushless Ourunner
Forward: Yes
Input Voltage: 2-4S LiPo
LiPo Compatibility: 2S,4S
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 360A
Maximum Continuous Current: Yes
Motor Limit: 2000Kv (4S)
Number of Poles: 12
Overload Protection: Yes
Reverse: Yes
RPM/Volt (Kv): 2000Kv
Shaft Diameter: 3.175" (81 mm)
Shaft Length: 18.5" (470 mm)
Technology: Smart
