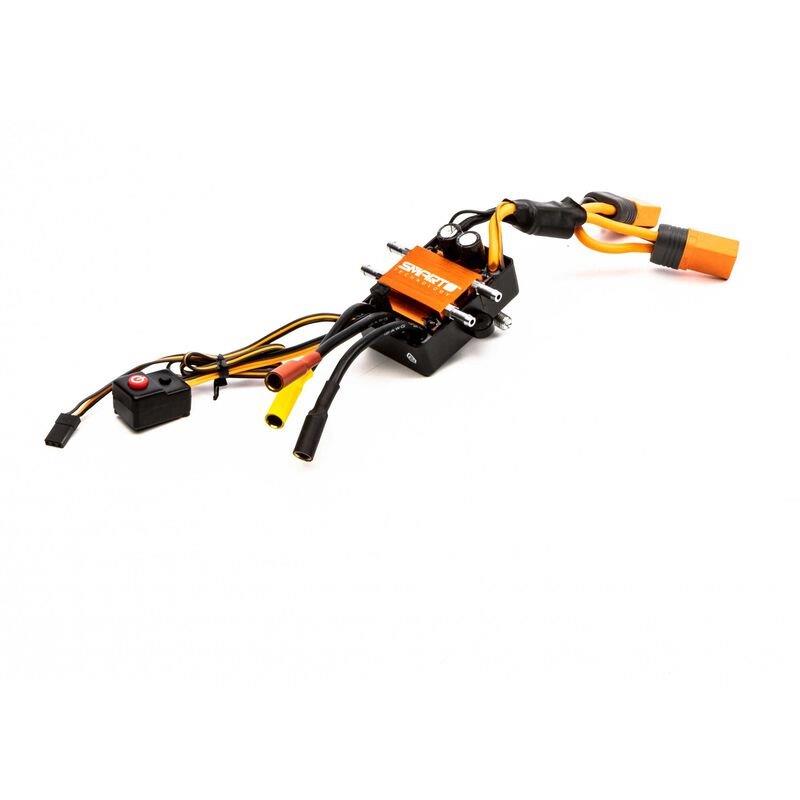

Spektrum Firma 120A Brushless Smart Marine ESC, 3S-6S
1 559 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXME1120
Product Details
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
120 Amp Continuous current, perfect for demanding high voltage setups
Up to 6S (22.2V) input voltage
Built in Series Connection with high heat resistant IC5 Connectors
No compromise waterproof design
Multiple water cooling jackets provide ample heat disbursement
Multiple options for easy programming:
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Compact for easy installation in most applications
Ready to install no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Multiple water cooling inlets/outlets
High current 6V BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Product Overview
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
Spektrum Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Product Specifications:
Amperage: 120A or larger
Application: Surface
Auto Cutoff: Yes
Battery Input Lead: IC5
BEC: Yes
BEC Continous Current: 5
BEC Type: Switch Mode
BEC Voltage: 6V
Brakes: Yes
Connector Type: IC5
ESC Type: Brushless
Forward: Yes
Input Voltage: 3S - 8S LiPo
Low-Voltage Cutoff Programmable: Yes
Max Input Voltage: 29.V
Maximum Burst Current: 1050A
Maximum Continuous Current: 160A
Motor Output Lead: 6.5mm
Overload Protection: Yes
Product Application: Surface
Product Height: 1.8" (44mm)
Product Length: 2.7" (70mm)
Product Weight: 9.9oz (280g)
Product Width: 3.03" (77mm)
Programmable: Yes
Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse: Yes
Technology: Smart
