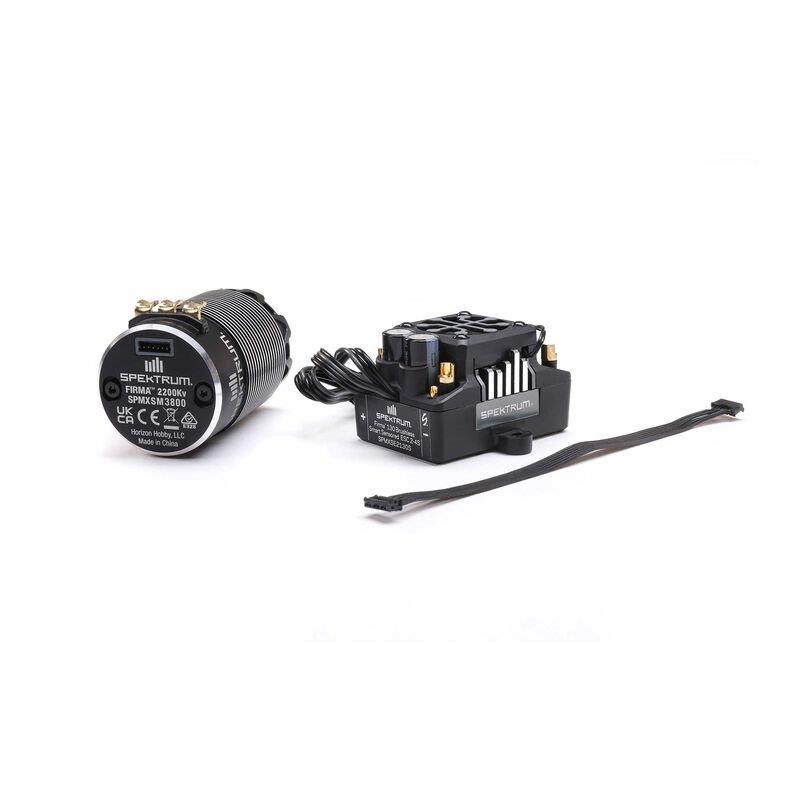

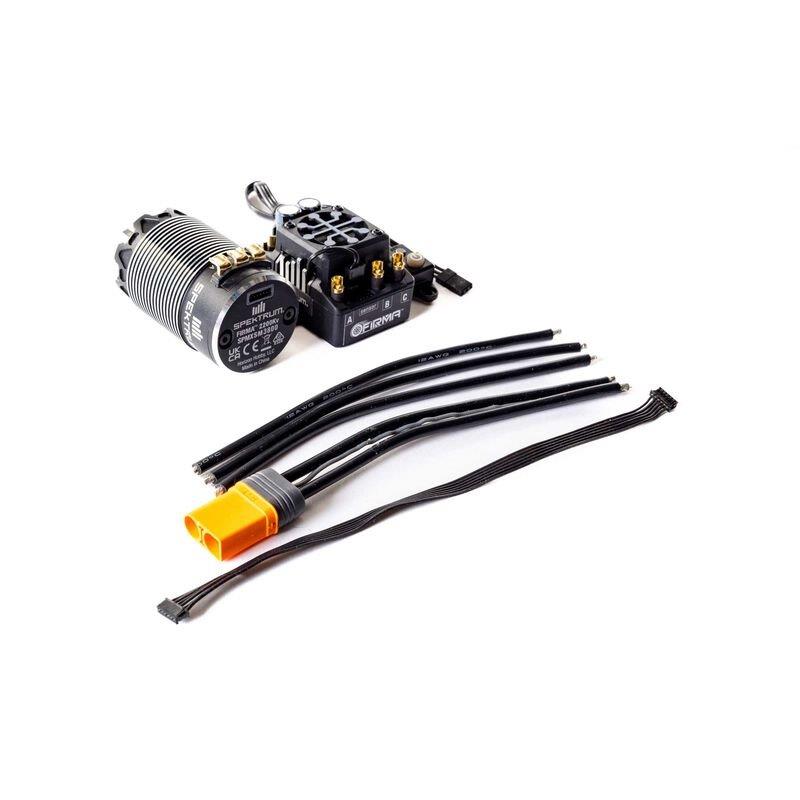

Spektrum Firma 130A Brushless Smart ESC / 2200Kv Sensored Motor Combo
4 439 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSEMC17
Product Details
The Spektrum Smart Firma 1/8th ESC + Motor Combo is a great choice for 1/8th scale buggies on 4S LiPo power. The motor features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle.
In The Box
(1) Spektrum Firma Smart Sensored ESC
(1) Spektrum Firma 2200Kv Sensored Brushless Motor
(1) Spektrum Smart Sticker Sheet
(1) IC5 Battery Lead
(1) Product Manual
Overview
The Spektrum Firma Sensored System is a combo that includes a Sensored 2200kv Motor and the Firma 130 Amp Sensored ESC, providing a perfect upgrade for 1/8th scale buggies.
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
This ESC comes bundled with a Spektrum Firma 2200Kv Sensored Brushless Motor, which is capable of handling everything this ESC can put out and is perfect for getting you driving with Spektrum Smart technology.
Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
o Button programming
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
o Forward programming directly from the TX when used with compatible SPM transmitters
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers in partnership with the industry's leading ESC manufacturer
Comes bundled with Spektrum Firma 2200Kv Brushless Motor
Compact for easy installation in most applications
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Specifications:
Amperage: 120A or larger
Auto Cutoff: Yes
Battery Connector: Solder tabs (user installable IC5 lead included)
Battery Input Lead: None, IC5
BEC: Yes
BEC Continous Current: 5A
BEC Voltage: 6V or 7.4V
Brakes: Yes
ESC Type: Sensored Brushless
Forward: Yes
Input Voltage: 7.4V - 14.8V
Low-Voltage Cutoff Programmable: Yes
Main Motor Type: Brushless
Maximum Burst Current: 760A
Maximum Continuous Current: 130A
Motor Output Lead: Solder tab
Motor Type: Brushless
Number of Poles: 4
Overload Protection: Yes
Programmable: Yes
Reverse: Yes
RPM/Volt (Kv): 2200Kv
Sensored: Yes
Shaft Diameter: 0.197" (5 mm)
Shaft Length: 0.728" (18 mm)
Speed Control: Included
Technology: Smart
