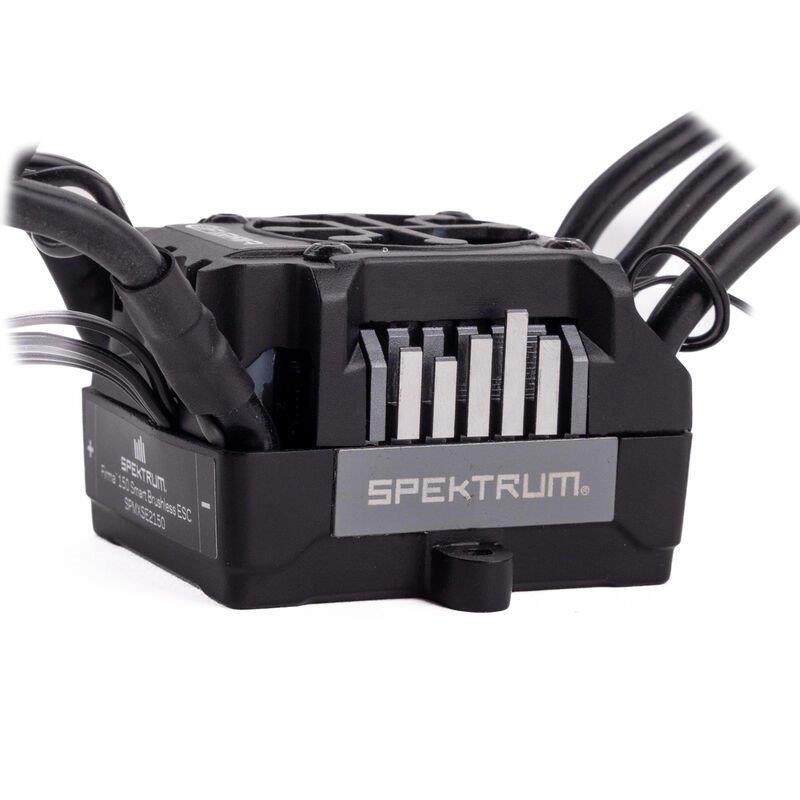

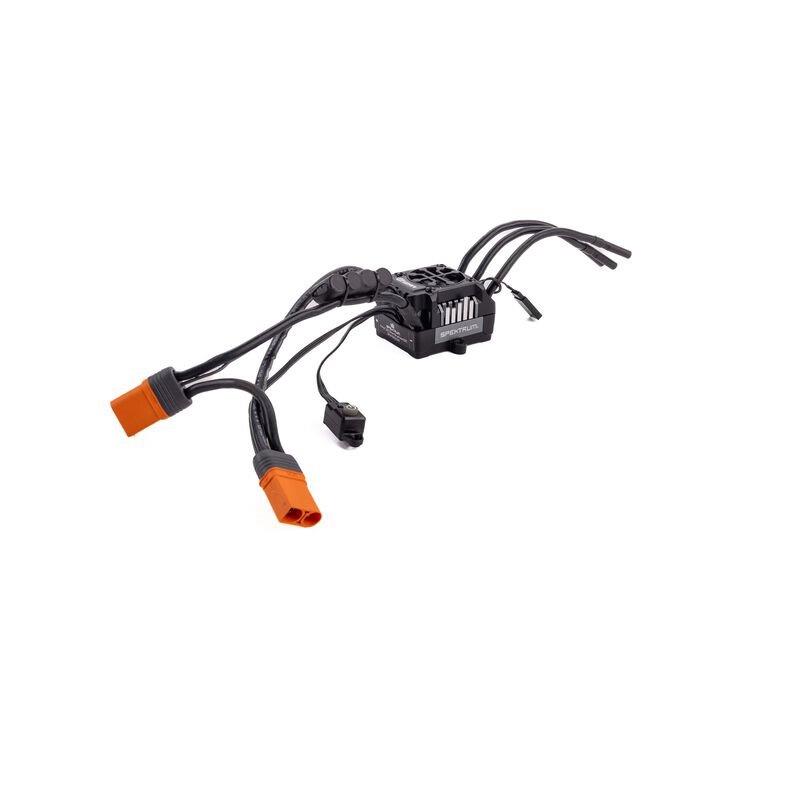

Spektrum Firma 150A Brushless Smart ESC V2, 3S - 6S: Dual IC5
2 159 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSE2150
Product Details
Key Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming
Ready to install no soldering required
In The Box
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart Sticker Sheet
(1) Product Manual
Needed to Complete
(1) Spektrum Surface Receiver
(1) Spektrum Smart Technology LiPo Battery
(1) Spektrum Transmitter
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:
o Button programming
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Product Specifications:
Amperage: 120A or larger
Application: Surface
Auto Cutoff: Yes
Battery Input Lead: IC5
BEC: Yes
BEC Continous Current: 4
BEC Type: Linear
BEC Voltage: 6V
Brakes: Yes
Connector Type: IC5
ESC Type: Brushless
Forward: Yes
Input Voltage: 3S - 6LiPo
Low-Voltage Cutoff Programmable: Yes
Max Input Voltage: 22.2V
Maximum Burst Current: 950A
Maximum Continuous Current: 150A
Motor Output Lead: 6.5mm
Output Connector: 4mm Bullet
Overload Protection: Yes
Product Application: Surface
Product Height: 1.5" (38.5mm)
Product Length: 2.3" (58mm)
Product Weight: 8.4oz (238g)
Product Width: 1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs
Programmable: Yes
Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse: Yes
Technology: Smart
Key Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming
Ready to install no soldering required
In The Box
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart Sticker Sheet
(1) Product Manual
Needed to Complete
(1) Spektrum Surface Receiver
(1) Spektrum Smart Technology LiPo Battery
(1) Spektrum Transmitter
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:
o Button programming
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Product Specifications:
Amperage: 120A or larger
Application: Surface
Auto Cutoff: Yes
Battery Input Lead: IC5
BEC: Yes
BEC Continous Current: 4
BEC Type: Linear
BEC Voltage: 6V
Brakes: Yes
Connector Type: IC5
ESC Type: Brushless
Forward: Yes
Input Voltage: 3S - 6LiPo
Low-Voltage Cutoff Programmable: Yes
Max Input Voltage: 22.2V
Maximum Burst Current: 950A
Maximum Continuous Current: 150A
Motor Output Lead: 6.5mm
Output Connector: 4mm Bullet
Overload Protection: Yes
Product Application: Surface
Product Height: 1.5" (38.5mm)
Product Length: 2.3" (58mm)
Product Weight: 8.4oz (238g)
Product Width: 1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs
Programmable: Yes
Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse: Yes
Technology: Smart
