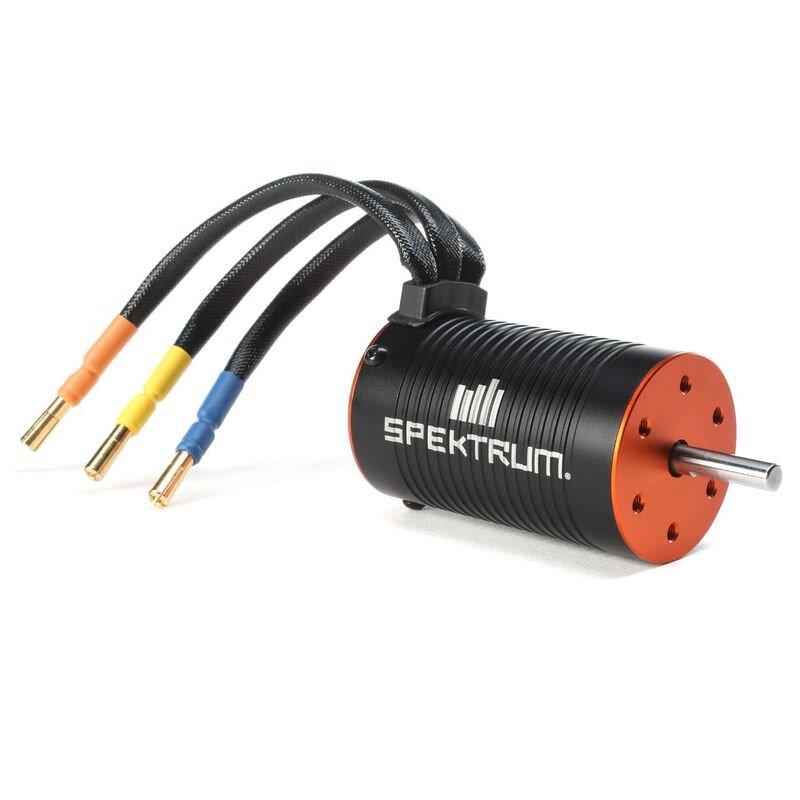

Spektrum Firma 1900Kv Brushless Motor

Product Details

Key Features
• Safe-D Shaft with C-Clip Locking Point to Prevent Pinion Gear Slip
• 5mm Diameter Steel Output Shaft
• 4mm Gold Plated Bullet Connectors

In The Box
• Firma 1900Kv Brushless Motor

Needed to Complete
• 130A ESC

Overview
The Firma 1900Kv brushless motor is a perfect option for 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 130 Smart ESC.

Features
• Perfect upgrade for 1/8 scale racers and bashers
• Safe-D Shaft provides a C-clip locking point to prevent pinion gear slip
• High efficiency design
• 6S LiPo power capable
• High-quality 4-pole sintered rotor
• 4mm gold plated bullet connectors
• High-quality construction with precision ball bearings and hardened steel 5mm shaft

Product Specifications:
Application: Upgrade for 1/8 scale racers and bashers with 3-6S Lipo powered setup
Bushing Or Bearing: Bearing
Connector Type: 4mm Bullet
Efficiency: 86%
Input Voltage: 11.1 - 22.2V
Maximum Continuous Current: 60A
Motor Class: 1/8 Scale
Motor Design: Inrunner
Motor Size: 4274
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 1.6 in (42 mm)
Output: 4940W
Part Type: Electronics
Product Length: 2.9" (74 mm)
Product Weight: 14.67 oz (416 g)
RPM/Volt (Kv): 1900Kv
Sensored: No
Shaft Diameter: 0.19" (5 mm)
Shaft Length: 0.73 in (18.5 mm)
