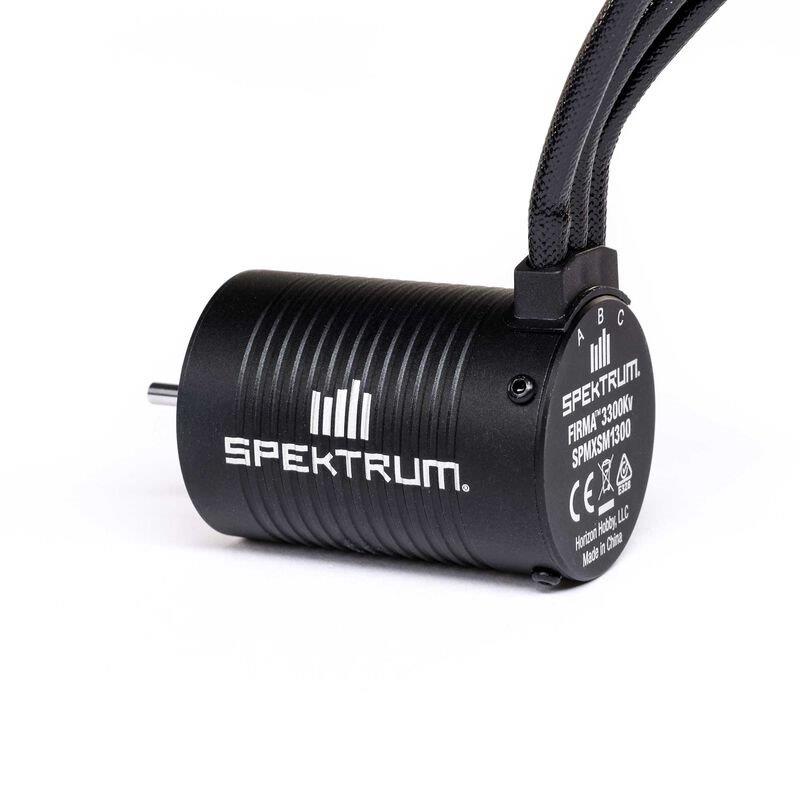

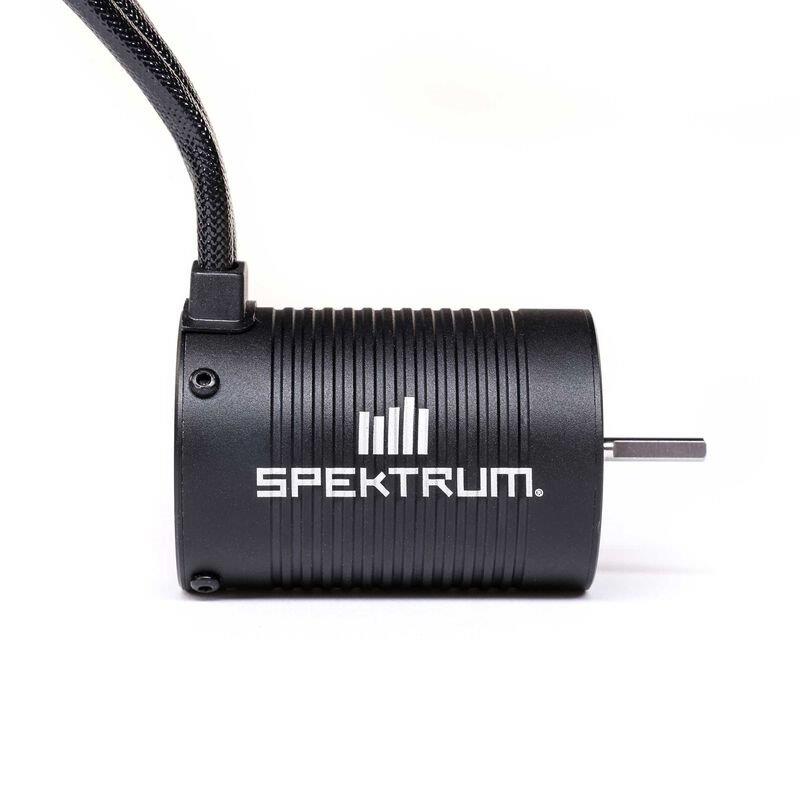

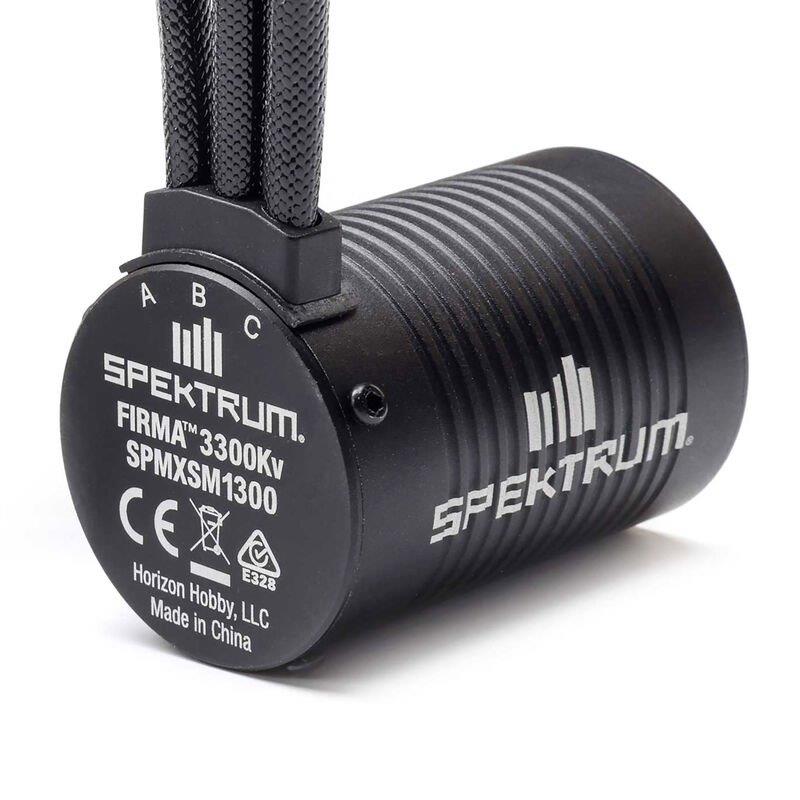

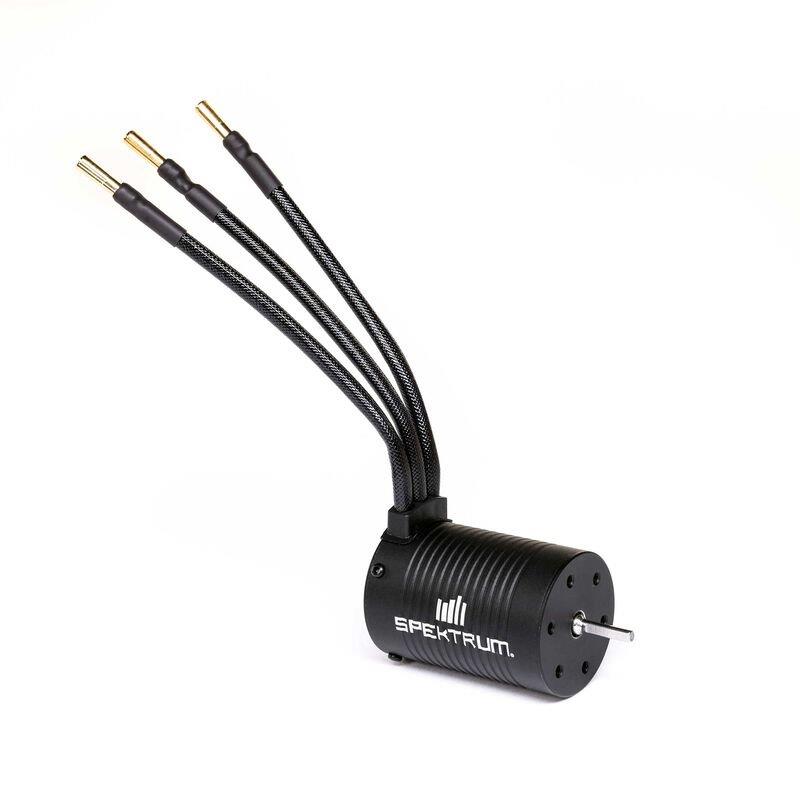

Spektrum Firma 3300Kv Brushless Motor
555 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSM1300
Product Details
Key Features
4mm Gold Plated Bullet Connectors
Brushless Non-Sensored Design
Can be Powered by 2-3S LiPo or 4-9 Cell NiMH Batteries
1/8" (3.175mm) Alloy Steel Output Shaft
In The Box
Firma 3300Kv Brushless Motor
Needed to Complete
85A ESC
Overview
The Firma 3300Kv brushless motor is a great choice for 1/10 scale 4WD, 2WD and on-road models running on 2S 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 85A Smart ESC.
Features
Excellent upgrade for 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
High-quality 4-pole sintered rotor
4mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Product Specifications:
Application: 1/10 scale 4WD, 2WD, and on-road models running 2S 3S LiPo
Bushing Or Bearing: Bearing
Connector Type: 4mm Bullet
Efficiency: 82%
Input Voltage: 6 12.6V (2-3S LiPo, 4-9 NiMH)
Maximum Continuous Current: 33A
Motor Class: 1/10 Scale
Motor Design: Inrunner
Motor Size: 3652-3300Kv
Motor Type: Brushless
Mounting Dimensions: Same as 540 and 550 size brushed motors
Number of Poles: 4
Outer Diameter: 1.47" (37 mm)
Output: 430W (2S)
Product Length: 2.04" (52 mm)
Product Weight: 7.05oz (200g)
Recommended Speed Control: Spektrum Firma 85A Smart ESC
RPM/Volt (Kv): 3300Kv
Sensored: No
Shaft Diameter: 0.125" (3 mm)
Key Features
4mm Gold Plated Bullet Connectors
Brushless Non-Sensored Design
Can be Powered by 2-3S LiPo or 4-9 Cell NiMH Batteries
1/8" (3.175mm) Alloy Steel Output Shaft
In The Box
Firma 3300Kv Brushless Motor
Needed to Complete
85A ESC
Overview
The Firma 3300Kv brushless motor is a great choice for 1/10 scale 4WD, 2WD and on-road models running on 2S 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 85A Smart ESC.
Features
Excellent upgrade for 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
High-quality 4-pole sintered rotor
4mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Product Specifications:
Application: 1/10 scale 4WD, 2WD, and on-road models running 2S 3S LiPo
Bushing Or Bearing: Bearing
Connector Type: 4mm Bullet
Efficiency: 82%
Input Voltage: 6 12.6V (2-3S LiPo, 4-9 NiMH)
Maximum Continuous Current: 33A
Motor Class: 1/10 Scale
Motor Design: Inrunner
Motor Size: 3652-3300Kv
Motor Type: Brushless
Mounting Dimensions: Same as 540 and 550 size brushed motors
Number of Poles: 4
Outer Diameter: 1.47" (37 mm)
Output: 430W (2S)
Product Length: 2.04" (52 mm)
Product Weight: 7.05oz (200g)
Recommended Speed Control: Spektrum Firma 85A Smart ESC
RPM/Volt (Kv): 3300Kv
Sensored: No
Shaft Diameter: 0.125" (3 mm)
